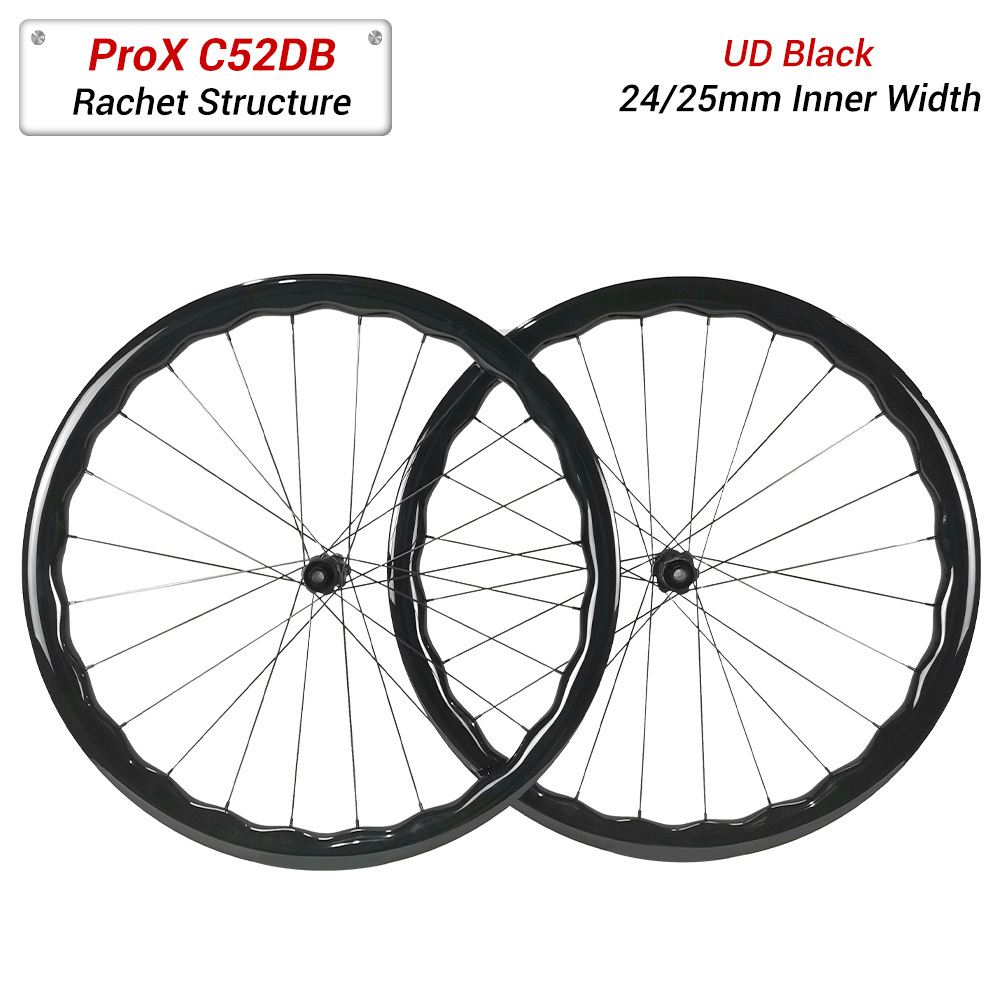

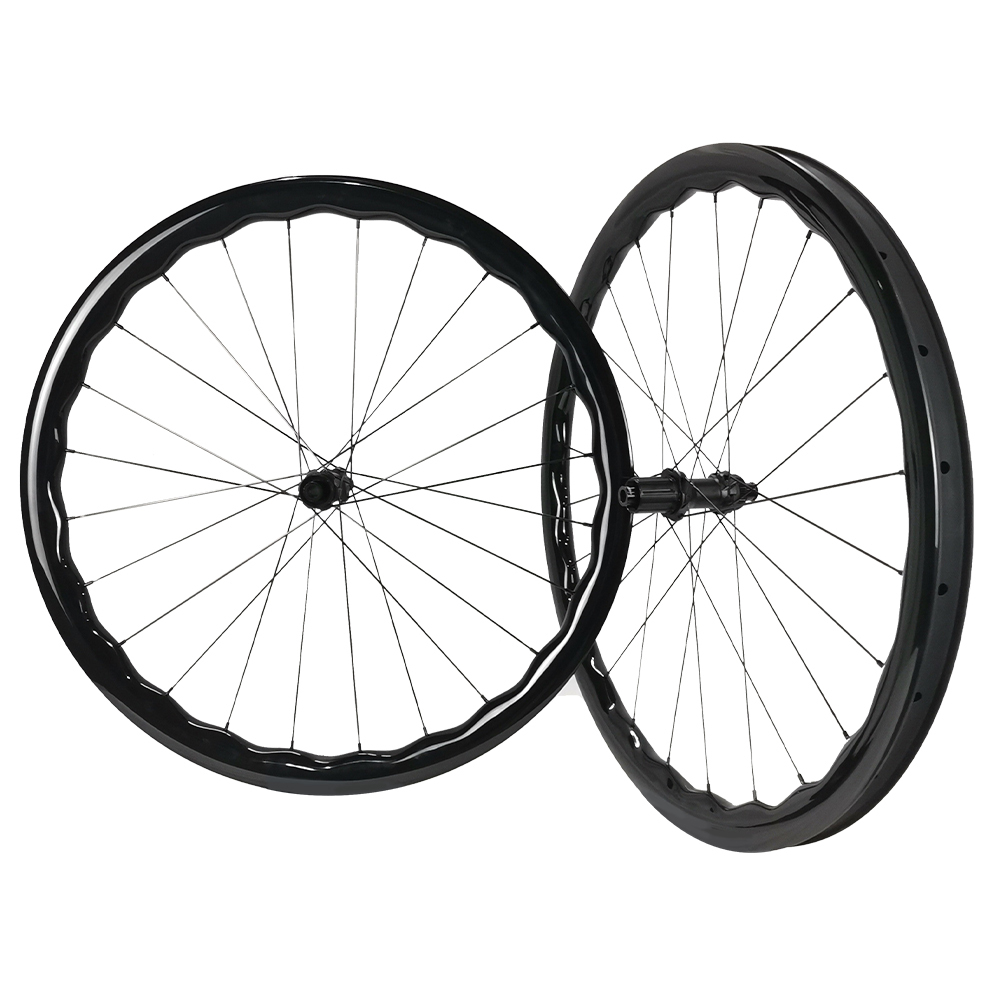

ProX C52DB Gravel Wheelset | Wavy Carbon Rim Gravel Wheel For Better Aerodynamics

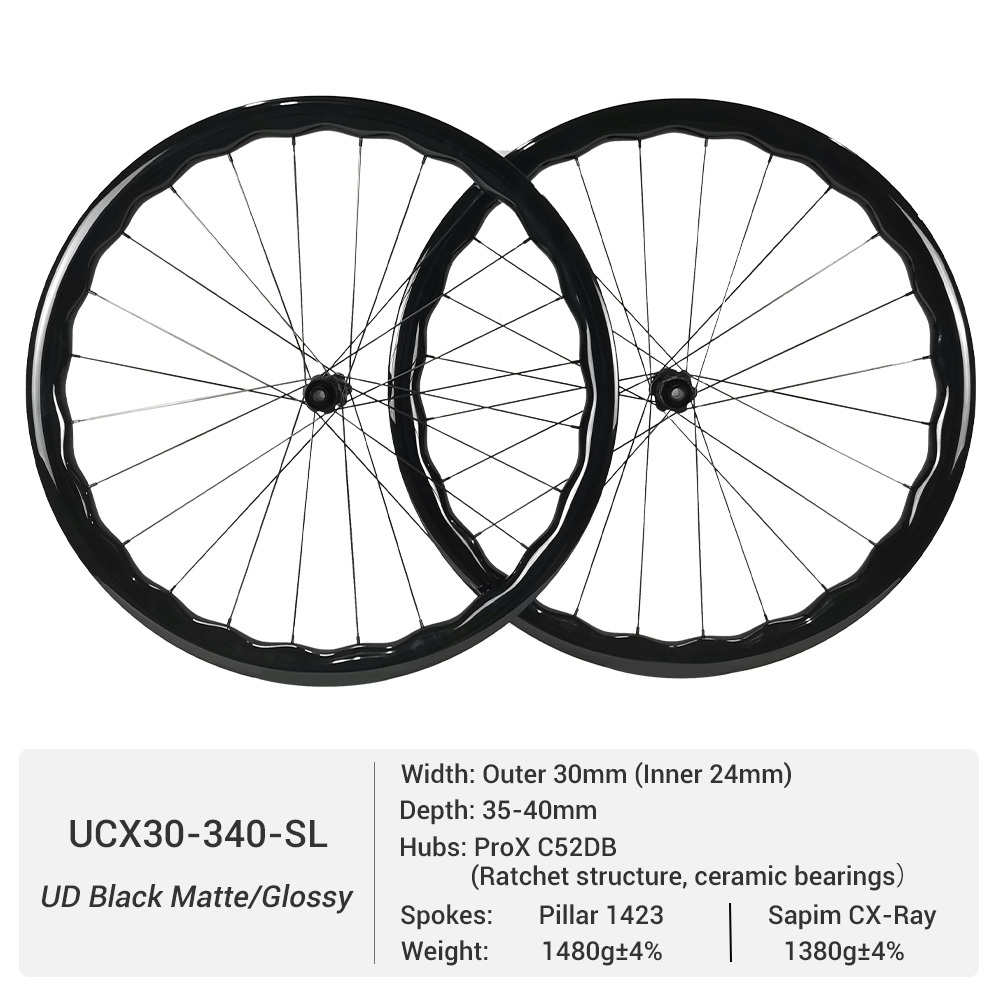

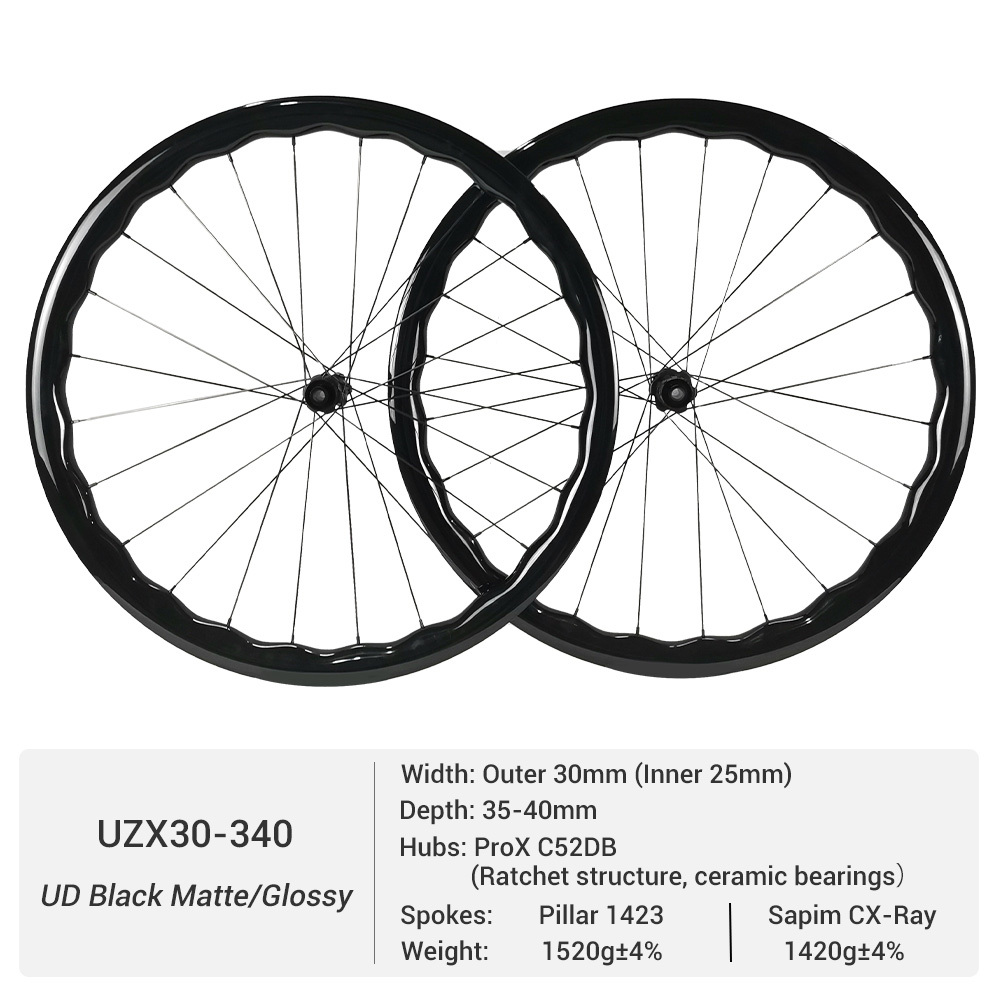

| Wheel Model | C52DB-UCX30-340-SL | C52DB-UCX30-340 | C52DB-UZX30-340-SL | C52DB-UZX30-340 |

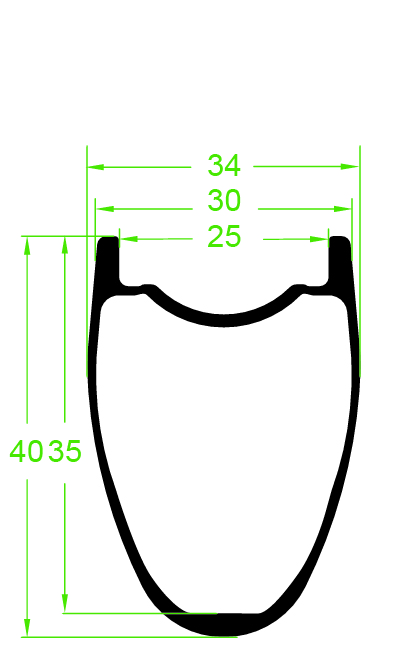

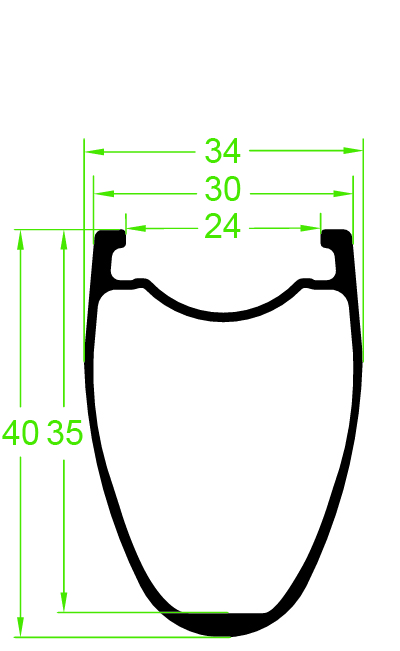

| Rim Sectional Drawing |  |
|
 |
|
| Carbon Rim Model | UCX30-340-SL | UCX30-340 | UZX30-340-SL | UZX30-340 |
| Carbon Rim Depth | 35-40mm | 35-40mm | 35-40mm | 35-40mm |
| Carbon Rim Width | 30mm Outer (24mm Inner) | 30mm Outer (24mm Inner) | 30mm Outer (25mm Inner) | 30mm Outer (25mm Inner) |
| Carbon Rim Surface | UD Black Matte Finish | UD Black Matte Finish | UD Black Matte Finish | UD Black Matte Finish |
| Carbon Rim Material | Toray T800 Carbon | Toray T700 Carbon | Toray T800 Carbon | Toray T700 Carbon |
| Carbon Spokes | Pillar 1423 Sapim CX-Ray |
Pillar 1423 Sapim CX-Ray |
Pillar 1423 Sapim CX-Ray |
Pillar 1423 Sapim CX-Ray |
| Wheel Weight (+/-3%) | 1480g | 1380g | 1560g | 1460g | 1440g | 1340g | 1520g | 1420g |
| Front/Rear Hubs | ProX C52DB | ProX C52DB | ProX C52DB | ProX C52DB |
| Front/Rear Hub Size | 12x100mm/12x142mm | 12x100mm/12x142mm | 12x100mm/12x142mm | 12x100mm/12x142mm |
| Front/Rear Holes Count | 24H/24H | 24H/24H | 24H/24H | 24H/24H |
| Brake Type | Disc Brake (Center Lock) | Disc Brake (Center Lock) | Disc Brake (Center Lock) | Disc Brake (Center Lock) |
| Tire Type | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher |
| Tire Size (Recommended) | 700x30C-50C | 700x30C-50C | 700x30C-50C | 700x30C-50C |
| Max Weight Limit | 100kg/220lb | 120kg/265lb | 100kg/220lb | 120kg/265lb |
◂ Spokes ▸
The popular Pillar PSR AERO 1423 spokes are used.
The spokes are manufactured using Pillar's patented cold forging technology, increasing strength by up to 20%.
Featuring an aerodynamic streamlined design, they offer excellent elasticity and a low drag coefficient.
 |
Carbon Fiber MaterialThis series carbon gravel rims are manufactured using premium Toray T700+T800 carbon fiber, combined with a stable resin system to ensure consistent quality and a lightweight structure for off-road cycling. |  |
Light Weight Design A carefully engineered lay-up structure using Toray T700+T800 carbon prepreg enables a lightweight gravel carbon rims. Excess material is minimized to reduce weight, while reinforcement around the spoke holes ensures structural strength. The result is low weight without compromising strength or stiffness. |
 |
Wider Inner Width With 24mm inner width (hook version) and 25mm inner width (hookless) , these gravel rims are optimized for modern 700×35C–45C tires and remain compatible with even wider tires. The increased width provides better tire support, simplifies installation and removal, and enhances traction and cornering stability. |  |

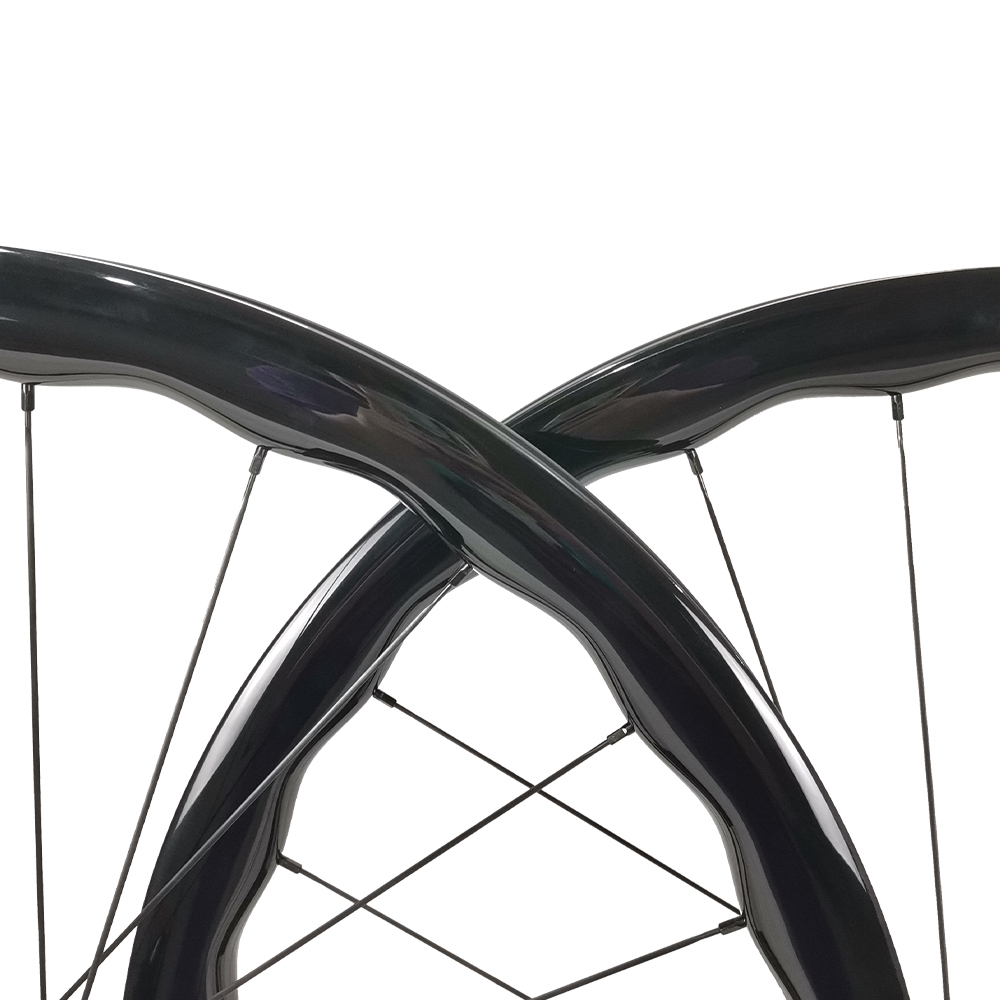

Undulating Rim DepthThe mid-depth rim profile varies by 5 mm in a wave pattern to improve aerodynamic efficiency and crosswind stability. This design enhances bike handling, delivering a faster and more confident riding experience. It also helps increase overall rim stiffness and strength.
|
 |
Bead Lock Design Subtle ridges along both sides of the carbon rim channel—known as bead locks—help facilitate easier tubeless tire inflation. Combined with a hooked bead design, they ensure a secure tire fit and reduce the risk of blowouts. |  |
Tubeless Ready Tubeless setups are mainstream in for gravel wheelset due to improved grip, lower rolling resistance, and enhanced comfort. All of our gravel carbon rims are tubeless compatible while still supporting standard inner tubes. An optimized anti-burp profile ensures straightforward tire installation, removal, and inflation. |
 |

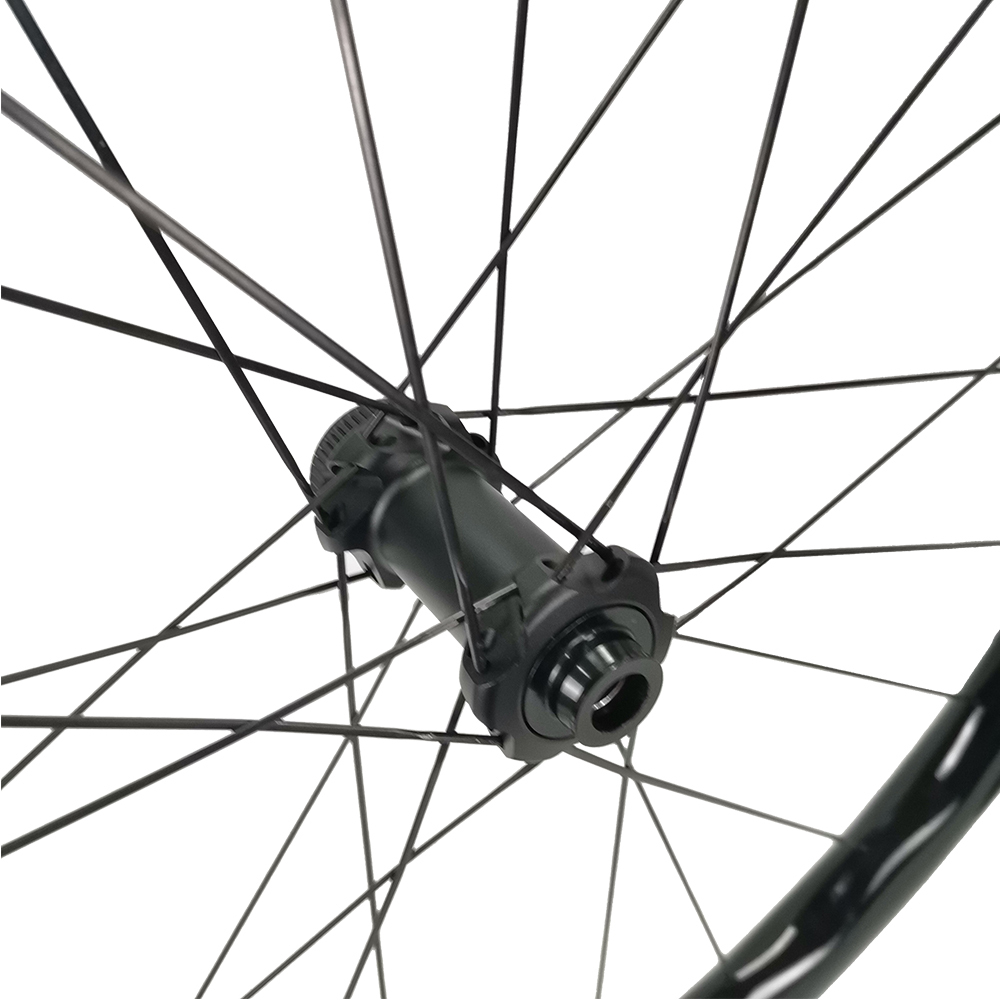

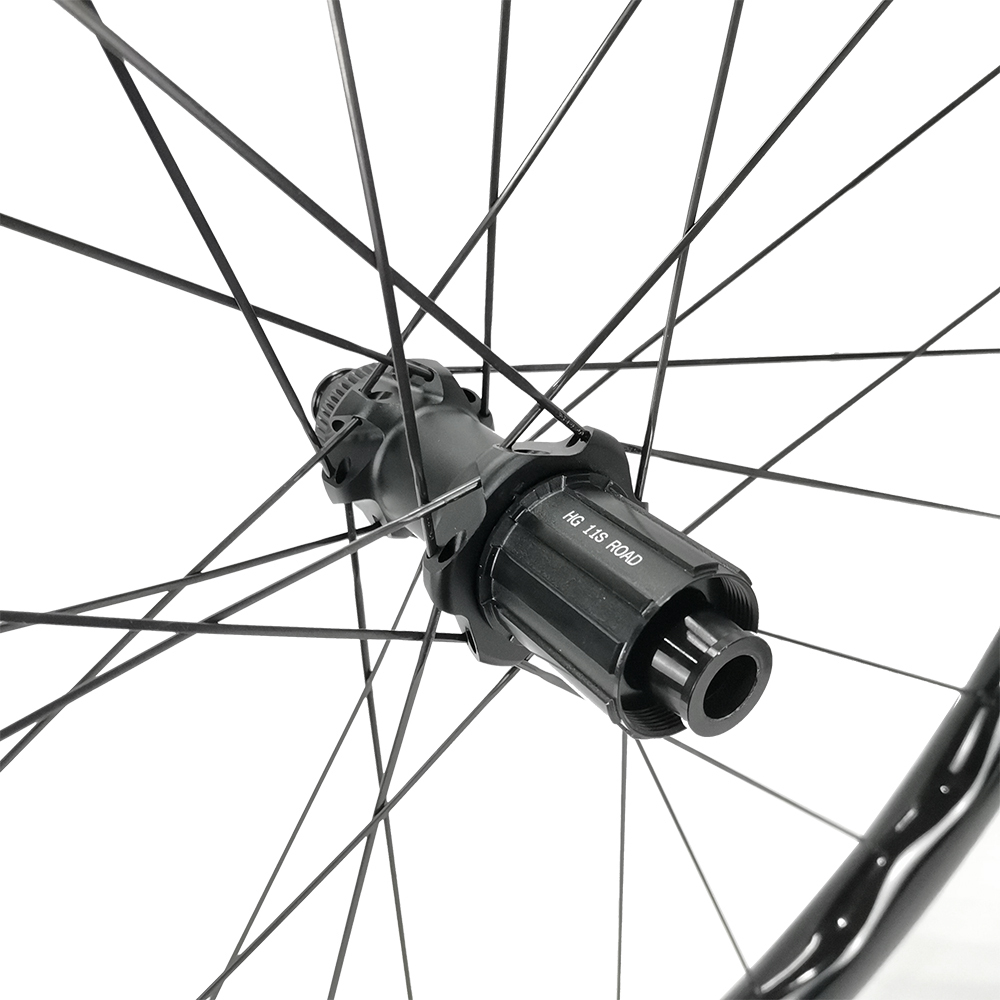

ProX C52DB HubsProX C52DB hubs provide reliable performance at a competitive price. Equipped with a 36T ratchet freehub system and ceramic bearings for consistent engagement and smooth rotation. Custom logo etching is supported. |  |
Pillar SpokesPillar PSR AERO 1423 spokes are a popular choice for performance wheelsets. Their patented cold forging process increases strength by up to 20%, while maintaining a lightweight aero profile. Effective combination of elasticity, durability, and aerodynamics. |
 |
Disc BrakeDisc brake provide more precise and consistent braking than rim brakes. These carbon rims are purpose-built for disc use, eliminating the brake track and avoiding heat-related issues. A dedicated carbon lay-up enhances durability while keeping weight low. |  |
2-Year Warranty Our production process includes strict quality control and comprehensive testing to ensure reliable performance. All ProX carbon rims and wheels are backed by a 2-year warranty from the date of delivery. Full details are on our Warranty Policy page. |
