Lateral Stiffness Test for ProX Carbon Rims

1. Purpose of Lateral Stiffness Test

Stiffness is an important performance indicator for carbon bicycle rims. Lateral stiffness refers to the rim’s ability to resist sideways deformation when a load is applied from the side. High lateral stiffness contributes to improved wheel stability during rapid accelerations, sprinting, and aggressive cornering, conditions commonly encountered in competitive cycling. A rim with good lateral stiffness can maintain wheel alignment more effectively and provide more precise handling. It is important to note that stiffness is different from strength. A rim with lower stiffness may still possess excellent structural strength. Therefore, the purpose of the lateral stiffness test is to measure the rim’s resistance to lateral flex while verifying that the structure remains intact under load.

2. Test Procedure

The lateral stiffness test evaluates rim deformation when a controlled lateral force is applied.

A calibrated testing device applies a 20kgf sideways load to the rim at three locations around the rim circumference. The test is repeated 3 times to ensure consistency of the measurement results.

Test positions include:

• One position at the valve hole area
• Two additional random locations along the rim

During the test, the maximum lateral deformation of the rim is recorded. After the applied load is removed and the force returns to 0 kgf, the rim is inspected to confirm that the structure returns to its original geometry without permanent deformation.

3. Test Standard

To meet the test requirements, the rim must satisfy the following criteria:

• The rim must withstand a 20 kgf lateral load without structural failure
• No cracks or visible structural damage are allowed during testing
• After the load is removed, the rim must fully recover with no permanent deformation

4. Sample Rim Used for Testing

This rim represents a lightweight carbon clincher rim designed for road cycling applications.

5. Test Results

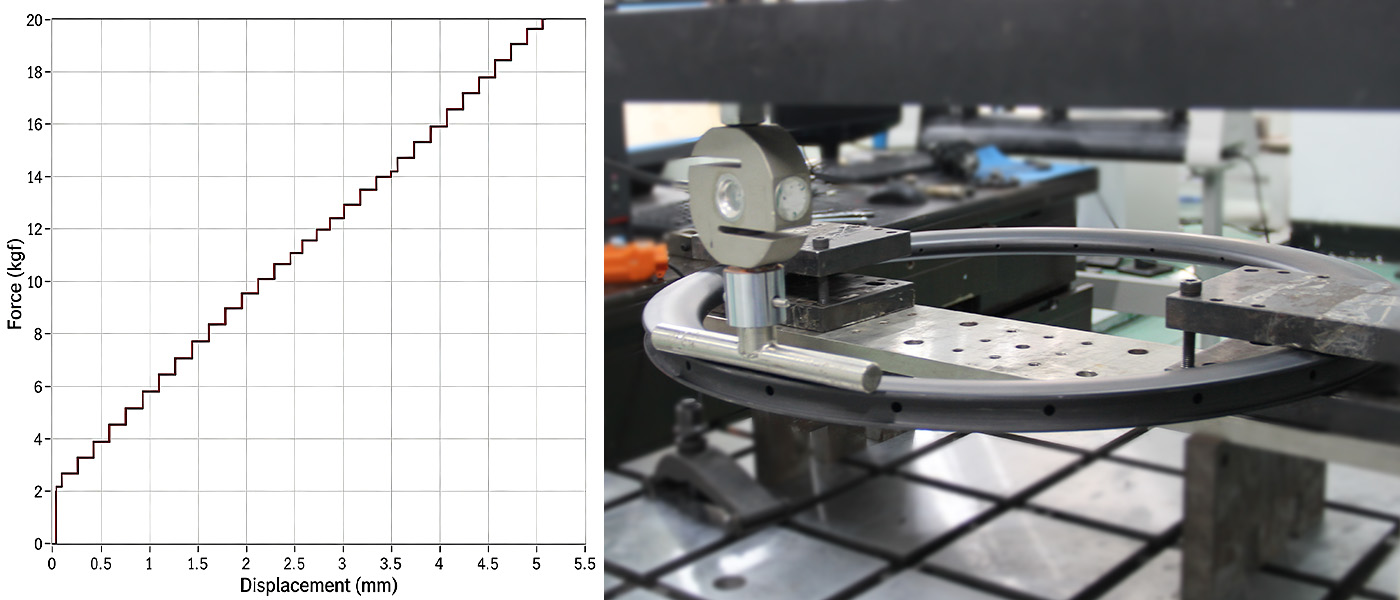

The rim was tested at three different positions using a maximum applied load of 20 kgf.

Maximum recorded deformation under load: 5.04 mm
Deformation after load removal (0 kgf): 0 mm

Conclusion: These results demonstrate that the rim provides reliable lateral stiffness and elastic recovery, supporting stable performance during high-load riding situations such as sprinting and rapid acceleration.
