Inflation Test for Carbon Rims

1. Purpose of Inflation Test

Carbon clincher rims are commonly used in road cycling applications where tires are inflated to relatively high pressures. Because the rim structure must contain and support this internal pressure, verifying its strength and dimensional stability is a critical step in product validation. The Inflation Pressure Test is designed to evaluate whether a carbon rim can safely withstand high internal air pressure without experiencing deformation, structural damage, or instability. By testing rims under controlled high-pressure conditions, manufacturers can confirm that the bead seat area, sidewalls, and valve hole region maintain their structural integrity. Successful completion of this test demonstrates that the rim is capable of handling high tire pressures during real-world riding conditions, thereby reducing the risk of structural failure.
To ensure consistent product reliability, 100% of ProX carbon rims undergo an inflation test as part of the final quality inspection process

2. Quality Control Principle

ProX applies a strict quality control procedure in which every carbon clincher rim is individually tested rather than relying on random sample inspection. During the inflation test, technicians carefully monitor the rim for the following potential issues:

• Structural deformation
• Bulging of the rim wall or bead seat
• Abnormal acoustic signals such as cracking or sharp noises
• Changes in rim alignment or parallelism

If any of the following conditions occur during testing, the rim will be rejected:

• Acute or abnormal noise
• Visible bulging
• Permanent deformation
• Dimensional deviation exceeding specification limits

Only carbon rims that meet all requirements are approved QC passed and will be moved to next procedure.

3. Test Procedure

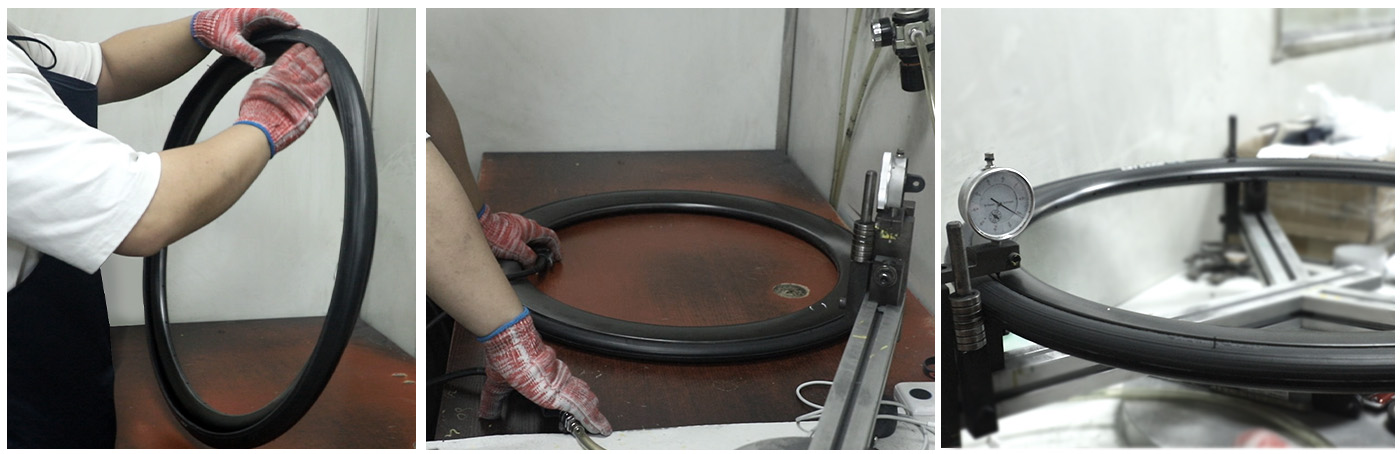

The test is performed by inflating the rim through the valve hole to a specified pressure level. The rim is closely monitored during the inflation process to observe its structural behavior under internal pressure. The pressure used during the test is intentionally set higher than typical riding pressure. This provides an additional safety margin and ensures that the rim structure is capable of withstanding demanding conditions. During the test, technicians inspect the rim for:

• Structural stability
• Changes in rim parallelism
• Signs of bulging or deformation
• Any abnormal noise generated by the carbon structure

4. Test Conditions

Test Pressure: 140 psi
Test Frequency: One test cycle per rim
Test Location: Valve hole
Inspection Method: Visual inspection and dimensional measurement

5. Test Standard

To pass the inflation pressure test, the rim must meet the following requirements when pressurized to 140 psi:

Rim Parallelism: ≤ 0.3 mm

Structural Condition Requirements:

• No abnormal or acute noise
• No bulging of the rim wall
• No structural deformation

These criteria confirm that the rim maintains dimensional stability and structural strength under high internal pressure.

6. Sample Rim Used for Testing

This model represents a typical lightweight carbon clincher rim designed for road cycling applications.

7. Test Results

The sample rim was inflated to 140 psi and evaluated according to the defined testing procedure.

Results:

• Rim parallelism remained within ≤ 0.3 mm under full pressure
• No abnormal or acute noise occurred during inflation
• No bulging or deformation was observed

Conclusion: The rim therefore meets the required inflation pressure resistance standard.
