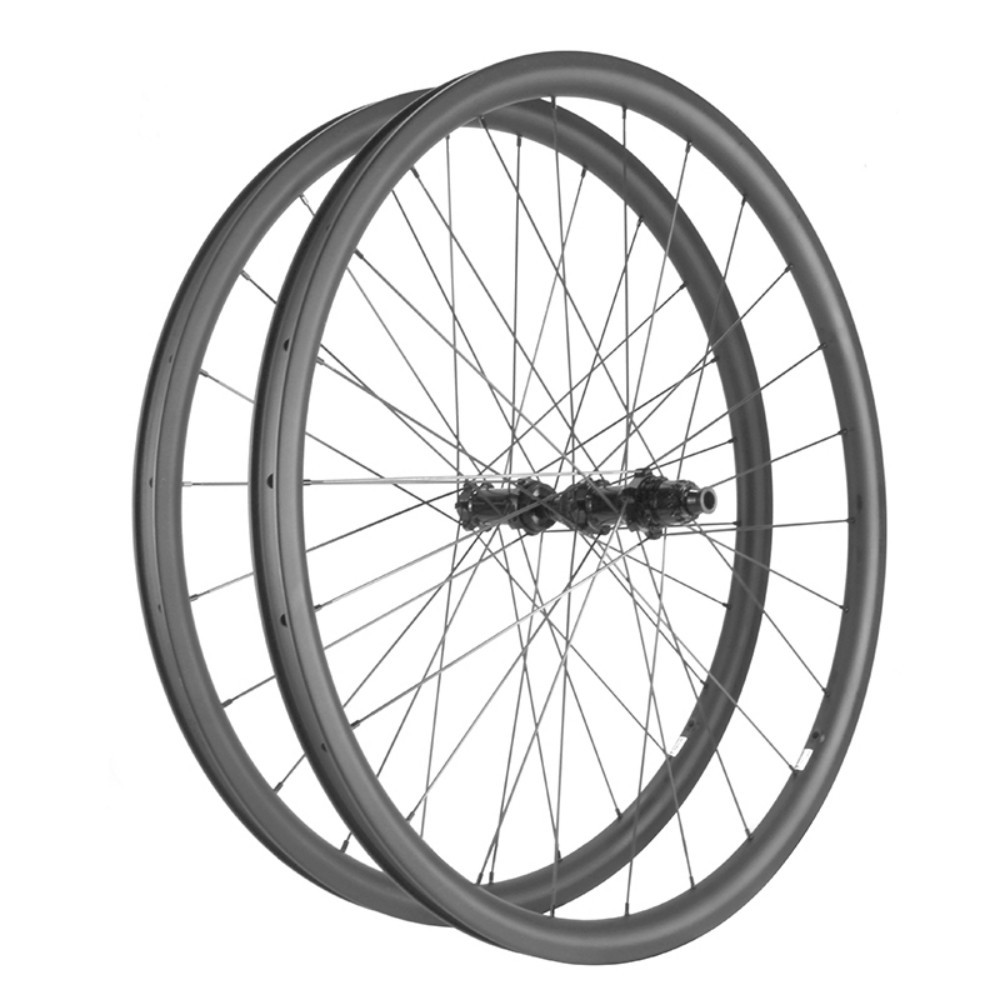

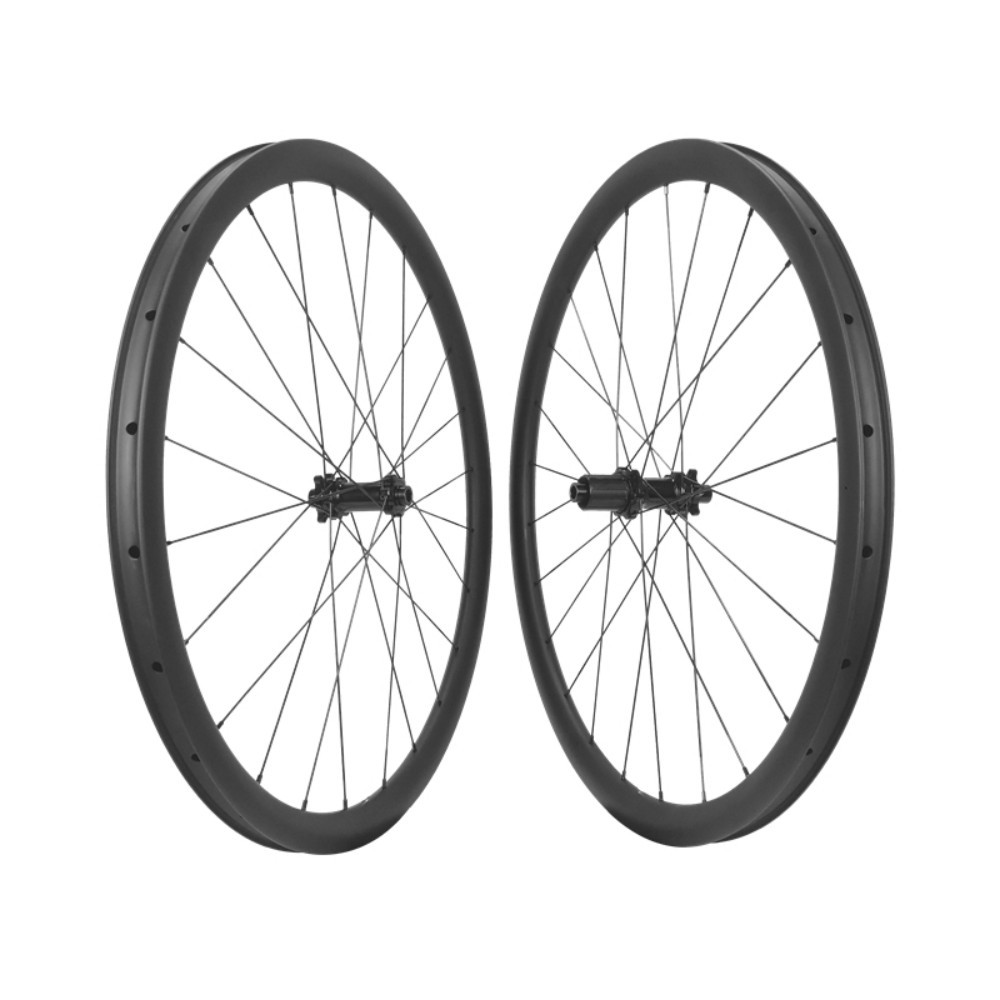

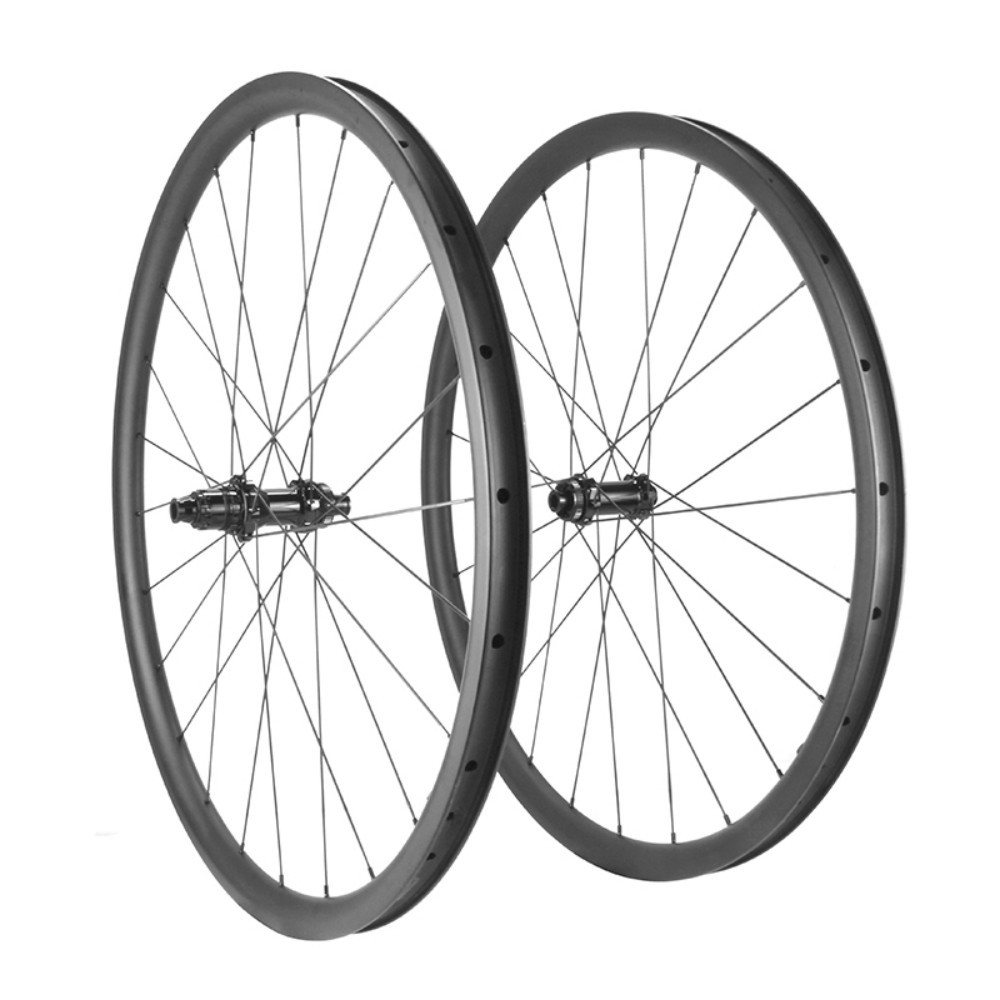

ProX 98DB Economical Disc Brake Carbon Gravel wheelset 29er And 650b Gravel Bike wheelset
| Wheel Model | 98DB-PCX930 | 98DB-PZX930 | 98DB-PCX730 | 98DB-PZX730 |

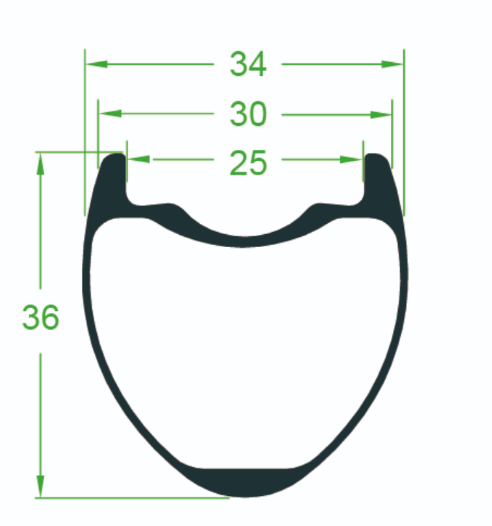

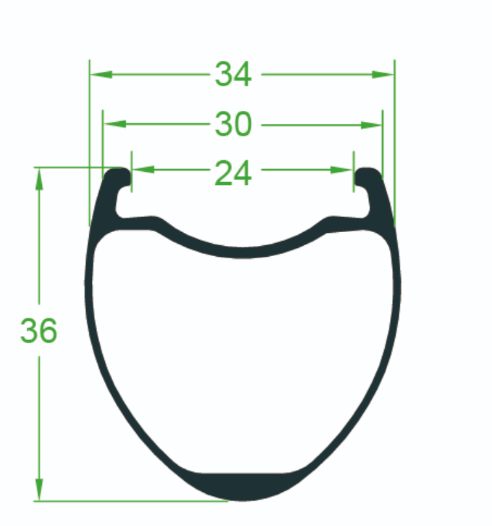

| Rim Sectional Drawing |  |
 |
|
|
| Carbon Rim Model | PCX930 | PZX930 | PCX730 | PZX730 |
| Carbon Rim Depth | 36mm | 36mm | 36mm | 36mm |
| Carbon Rim Width | 30mm Outer (24mm Inner) | 30mm Outer (25mm Inner) | 30mm Outer (24mm Inner) | 30mm Outer (25mm Inner) |
| Carbon Rim Surface | UD Black Matte Finish | UD Black Matte Finish | UD Black Matte Finish | UD Black Matte Finish |
| Carbon Rim Material | Toray T700+T800 Carbon | Toray T700+T800 Carbon | Toray T700+T800 Carbon | Toray T700+T800 Carbon |
| Carbon Spokes | Pillar 1423 Sapim CX-Ray |
Pillar 1423 Sapim CX-Ray |
Pillar 1423 Sapim CX-Ray |
Pillar 1423 Sapim CX-Ray |
| Wheel Weight (+/-3%) | 1571g | 1471g | 1531g | 1431g | 1531g | 1431g | 1491g | 1391g |

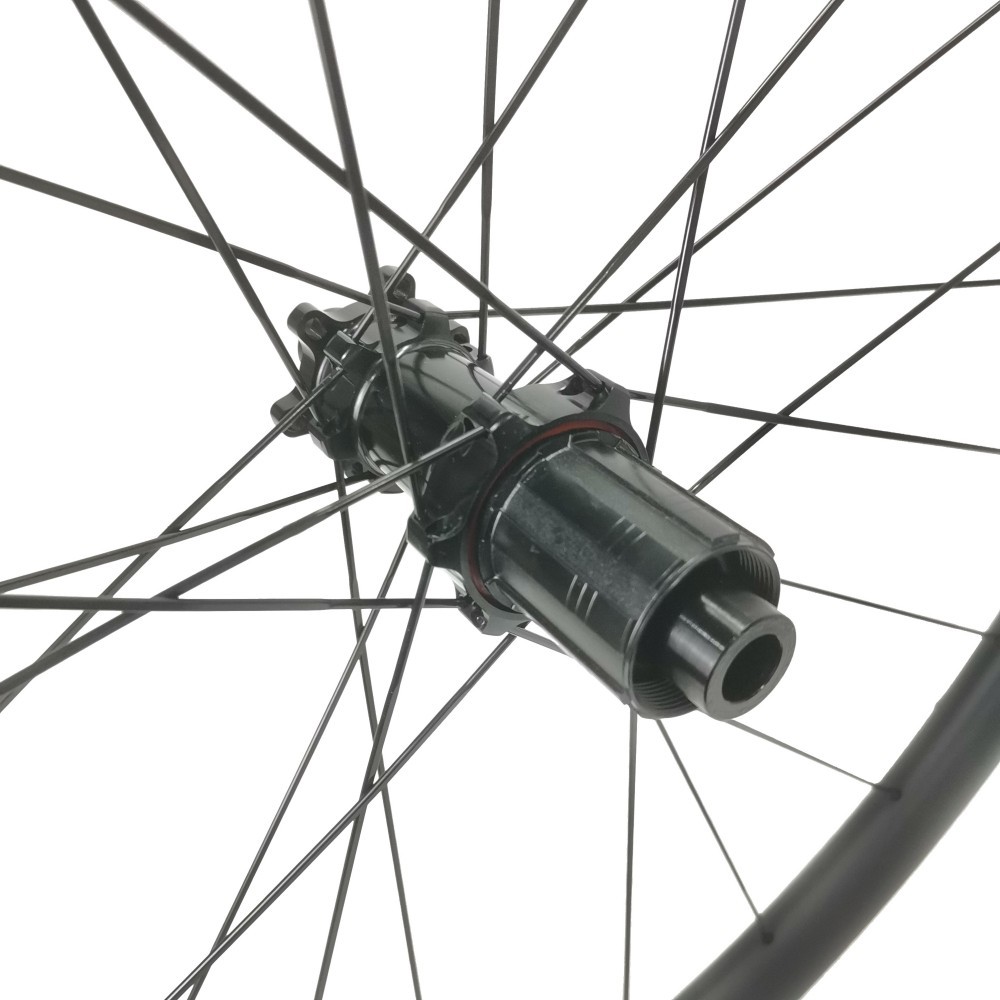

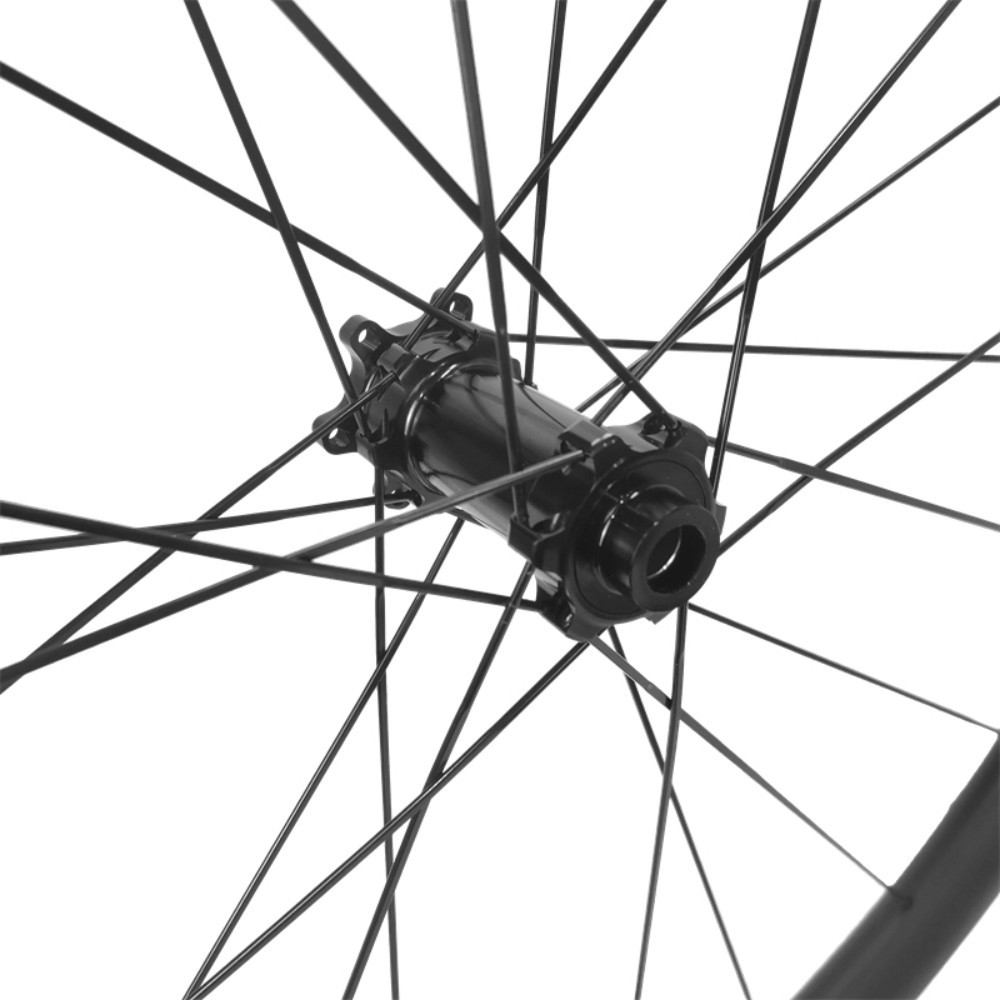

| Front/Rear Hubs | ProX 98DB | ProX 98DB | ProX 98DB | ProX 98DB |
| Front/Rear Hub Size | 12x100mm/12x142mm | 12x100mm/12x142mm | 12x100mm/12x142mm | 12x100mm/12x142mm |
| Front/Rear Holes Count | 24H/24H | 24H/24H | 24H/24H | 24H/24H |
| Brake Type | Disc Brake (Center Lock) | Disc Brake (Center Lock) | Disc Brake (Center Lock) | Disc Brake (Center Lock) |
| Tire Type | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher |
| Tire Size (Recommended) | 29er*2.0''-2.4'' | 29er*2.0''-2.4'' | 650b*2.0''-2.4'' | 650b*2.0''-2.4'' |
| Max Weight Limit | 120kg/265lb | 120kg/265lb | 120kg/265lb | 120kg/265lb |
Spokes:
The popular Pillar PSR AERO 1423 spokes are used.
The spokes are manufactured using Pillar's patented cold forging technology, increasing strength by up to 20%.
Featuring an aerodynamic streamlined design, they offer excellent elasticity and a low drag coefficient.
Quality Control & Testing
More details regarding PROX carbon rims and wheels testing can be found by clicking below pictures:
