ProX 98DB Disc Brake Cheap Price 700C Widened 32mm Inner Width Gravel Carbon Wheel
| Wheel Model | 98DB-PXG32-40C | 98DB-PXG32-45C | 98DB-PXG32-50C |

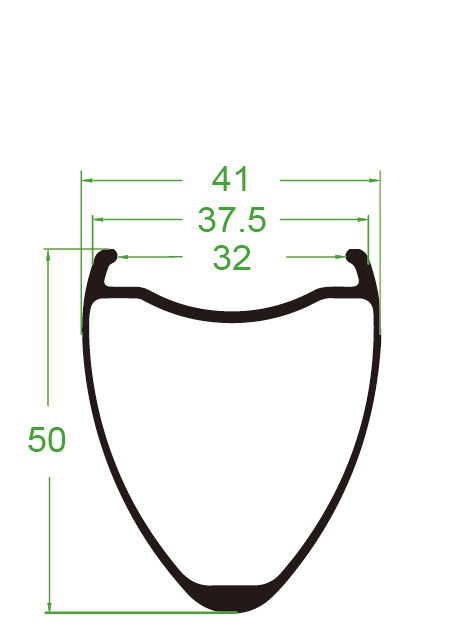

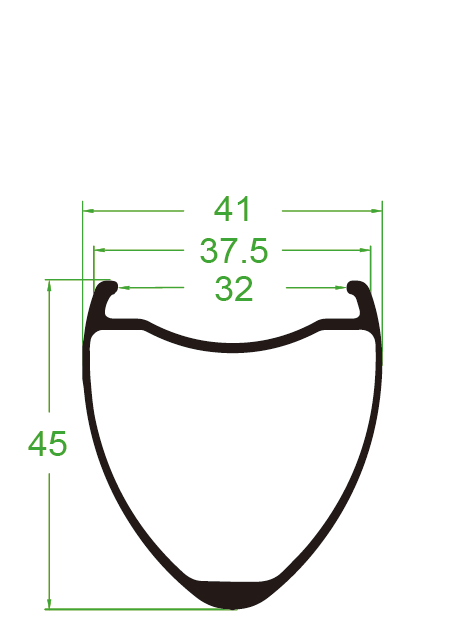

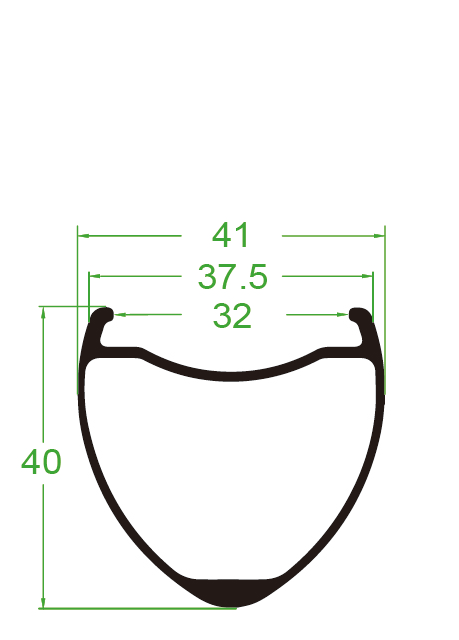

| Rim Sectional Drawing |  |
 |
 |
| Carbon Rim Model | PXG32-40C | PXG32-45C | PXG32-50C |
| Carbon Rim Depth | 40mm | 45mm | 50mm |
| Carbon Rim Width | 37.5mm Outer (32mm Inner) | 37.5mm Outer (32mm Inner) | 37.5mm Outer (32mm Inner) |
| Carbon Rim Surface | UD Black Matte Finish | UD Black Matte Finish | UD Black Matte Finish |
| Carbon Rim Material | Toray T700 Carbon | Toray T700 Carbon | Toray T700 Carbon |
| Carbon Spokes | Pillar 1423 Sapim CX-Ray |
Pillar 1423 Sapim CX-Ray |
Pillar 1423 Sapim CX-Ray |
| Wheel Weight (+/-3%) | 1531g | 1541g | 1551g | 1561g | 1591g | 1601g |
| Front/Rear Hubs | ProX 98DB | ProX 98DB | ProX 98DB |
| Front/Rear Hub Size | 12x100mm/12x142mm | 12x100mm/12x142mm | 12x100mm/12x142mm |
| Front/Rear Holes Count | 24H/24H | 24H/24H | 24H/24H |
| Brake Type | Disc Brake (Center Lock) | Disc Brake (Center Lock) | Disc Brake (Center Lock) |
| Tire Type | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher |
| Tire Size (Recommended) | 700x44C-70C | 700x44C-70C | 700x44C-70C |
| Max Weight Limit | 120kg/265lb | 120kg/265lb | 120kg/265lb |
Spokes:
The popular Pillar PSR AERO 1423 spokes are used.
The spokes are manufactured using Pillar's patented cold forging technology, increasing strength by up to 20%.
Featuring an aerodynamic streamlined design, they offer excellent elasticity and a low drag coefficient.

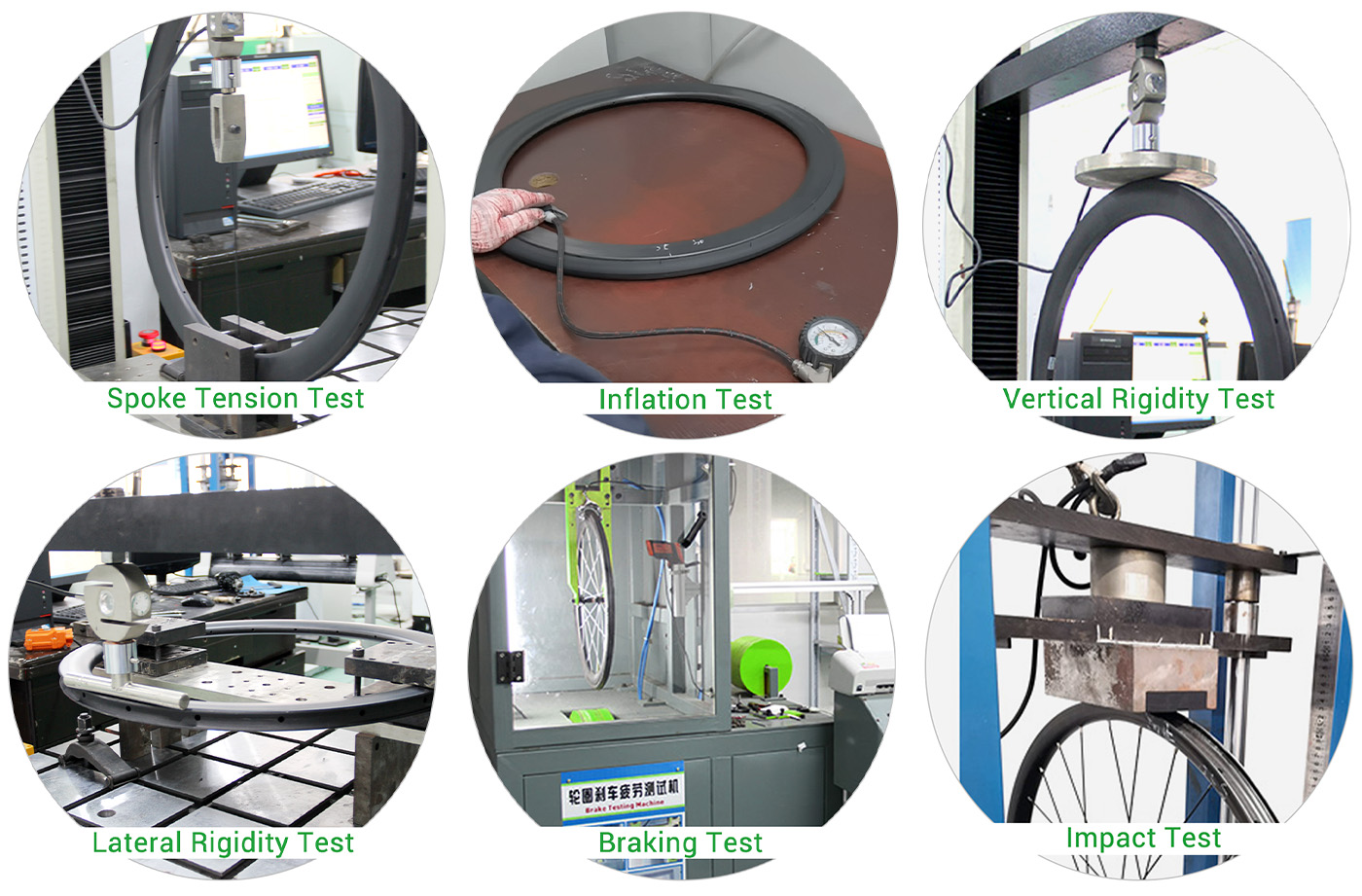

Quality Control & Testing
More details regarding PROX carbon rims and wheels testing can be found by clicking below pictures:
