Home > All Products > Wheels > TT/Track Wheels > 3-Spoke Carbon Wheels > ProX Tri-Spoke 700C Undulating Wavy 3-Spoke Carbon Wheels

1/1

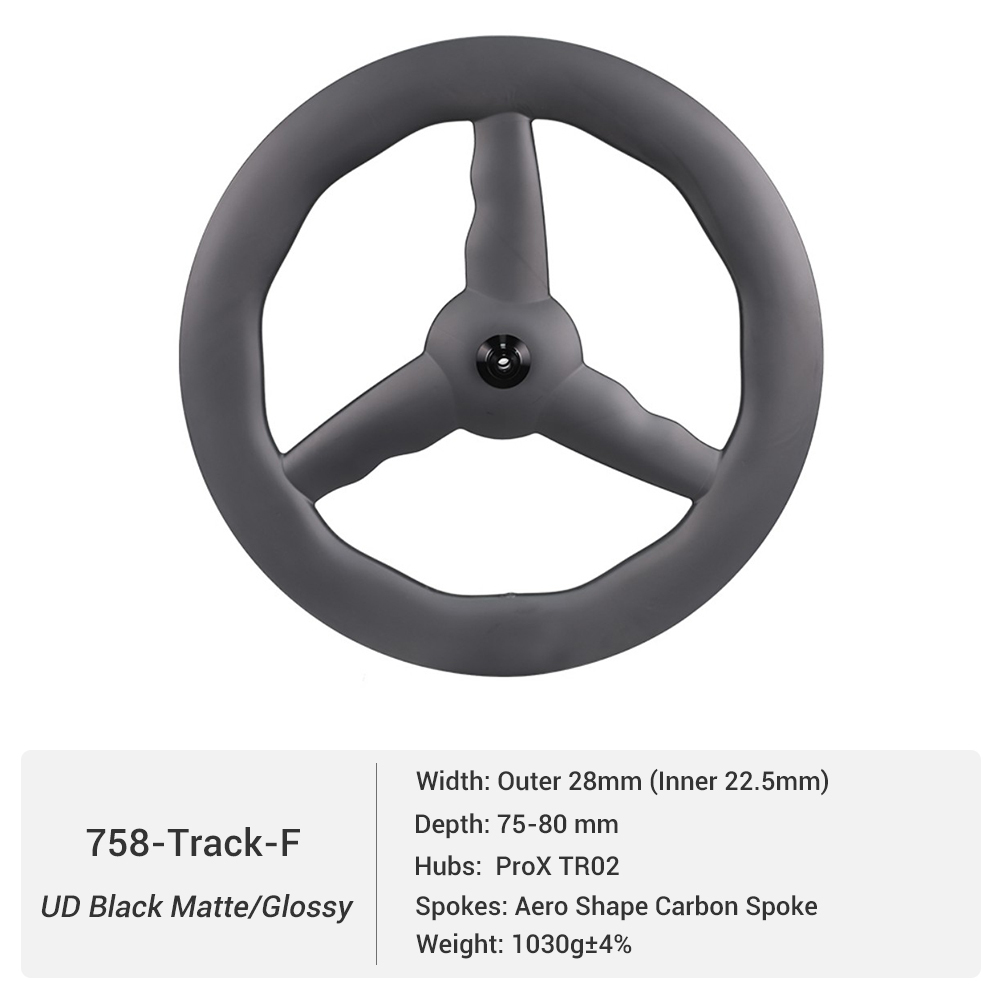

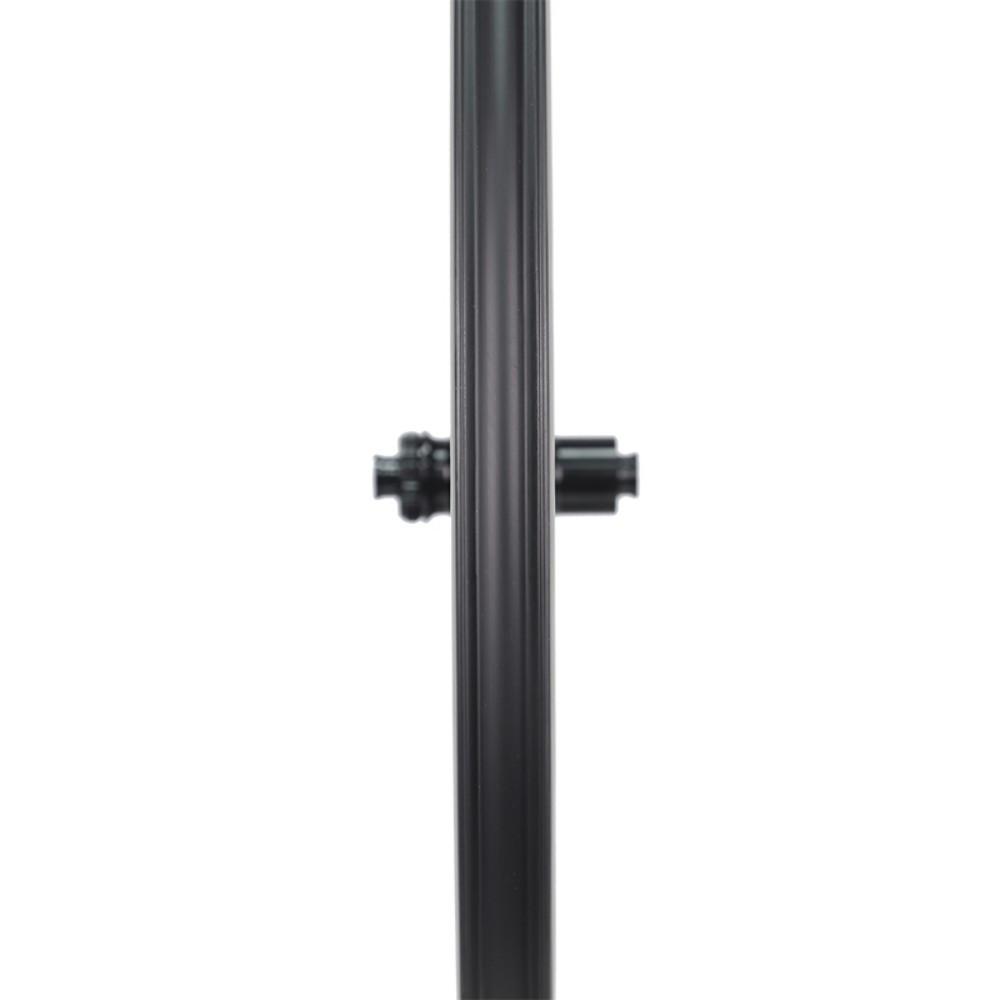

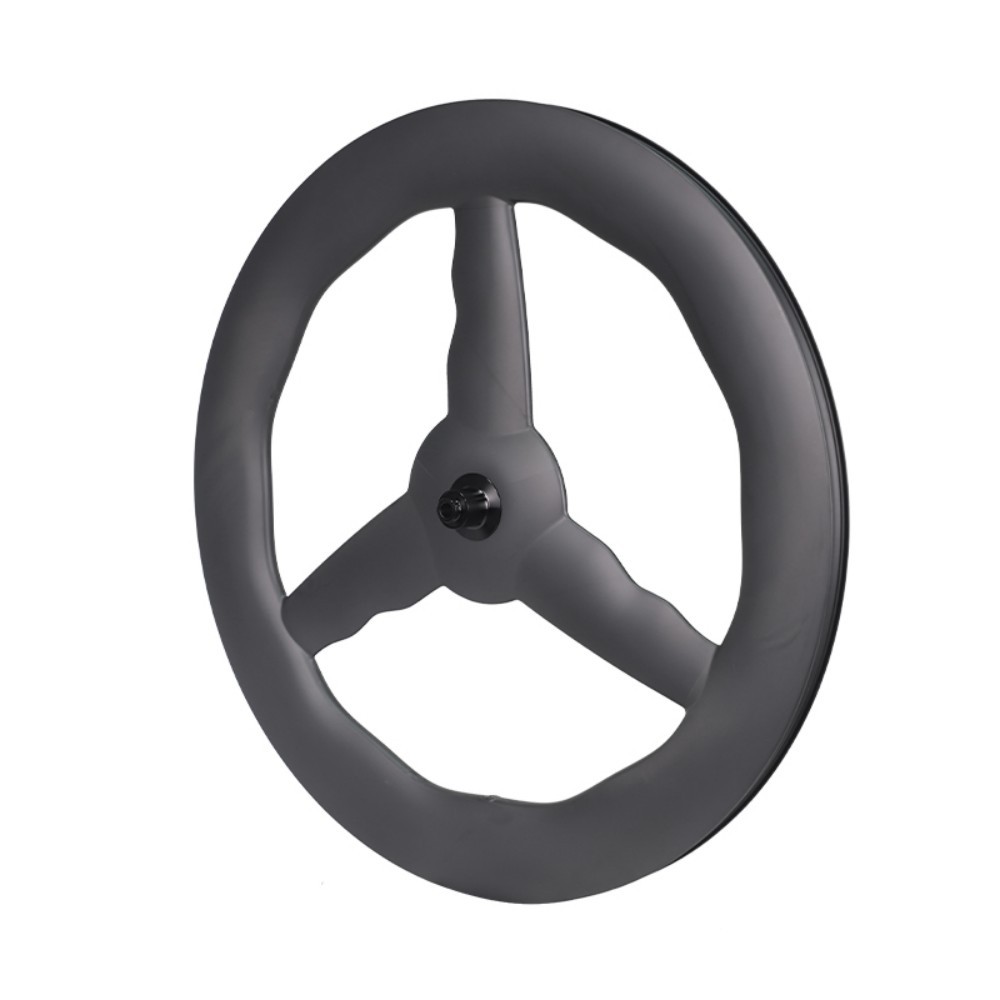

ProX Tri-Spoke 700C Undulating Wavy 3-Spoke Carbon Wheels

ProX hub with 36T ratchet freehub system
28mm outer / 22.5mm inner width road carbon rims
75-80mm undulating depth 3-spoke wheels
Tubeless ready, for 700C 28C-45C tires
Disc brake/ Rim brake optional

$400.00

Received successfully

Coupon Code

Please select the information you want X

Road Carbon Rims Front & Rear:

P3-758V-Road-F

P3-758V-Road-R

P3-758DB-Road-F

P3-758DB-Road-R

P3-758V-Track-F

P3-758V-Track-R
Carbon Rim Finish:

UD Black Matte Finish

UD Black Glossy Finish
PROX Decals On Carbon Rims:

No Decal

Black Glossy

White Glossy
Hub Structure:

Ratchet 36T
Freehub Body:

Shimano 11/12s HG

Sram 12/13s XDR

Quantity:

Add to Favorites

1/1

Description

ProX Tri-Spoke 700C Undulating Wavy 3-Spoke Carbon Wheels

Wheel Model	P3-758V-Road-F	P3-758V-Road-R	88MB-PAD933GP	88MB-PAD933	88MB-PAD938	88MB-PAD940

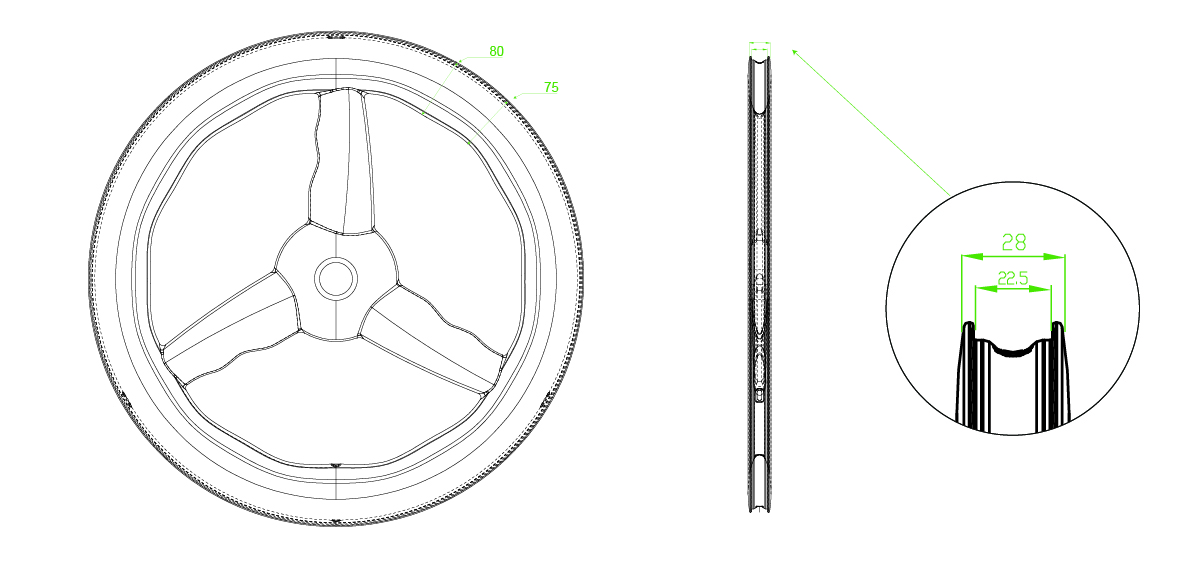

Rim Sectional Drawing
Terrain	Road/TT	Road/TT		PAD933GP-TR	PAD938-AM	PAD940-EN
Carbon Rim Depth	75-80mm	75-80mm	25mm	25mm	28mm	28mm
Carbon Rim Width	28mm Outer (22.5mm Inner)	28mm Outer (22.5mm Inner)	33mm Outer (26mm Inner)	33mm Outer (26mm Inner)	38mm Outer (32mm Inner)	34mm Outer (40mm Inner)
Carbon Rim Surface	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish
Carbon Rim Material	Toray T700 Carbon	Toray T700 Carbon	Toray T700+T800+Graphene Carbon	Toray T700+T800+Graphene Carbon	Toray T700 Carbon	Toray T700 Carbon
Wheel Weight (+/-3%)	950g	1050g	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray
Front/Rear Hubs	ProX RT36	ProX RT36	1555g \| 1440g	1475g \| 1360g	1695g \| 1580g	1775g \| 1660g
Hub Size	5x100mm	5x100mm	ProX 88MB	ProX 88MB	ProX 88MB	ProX 88MB
Brake Type	Rim Brake	Rim Brake	15x110mm/12x148mm	15x110mm/12x148mm	15x110mm/12x148mm	15x110mm/12x148mm
Tire Type	Clincher	Clincher	28H/28H	28H/28H	28H/28H	28H/28H
Tire Size (Recommended)	700x28C-45C	700x28C-45C	29*2.0''-2.4''	29*2.0''-2.4''	29*2.0''-2.4''	29*2.0''-2.4''
Max Weight Limit	120kg/265lb	120kg/265lb	100kg/220lb	120kg/265lb	120kg/265lb	120kg/265lb

◂ Rims ▸
28mm External / 22.5mm Internal Width Engineered to accommodate wider tires ranging from 700×28C to 700×45C, this rim shape boosts traction and stability without sacrificing aerodynamic performance.
The expanded inner width optimizes tire footprint, lowers rolling resistance, and delivers more assured cornering control.

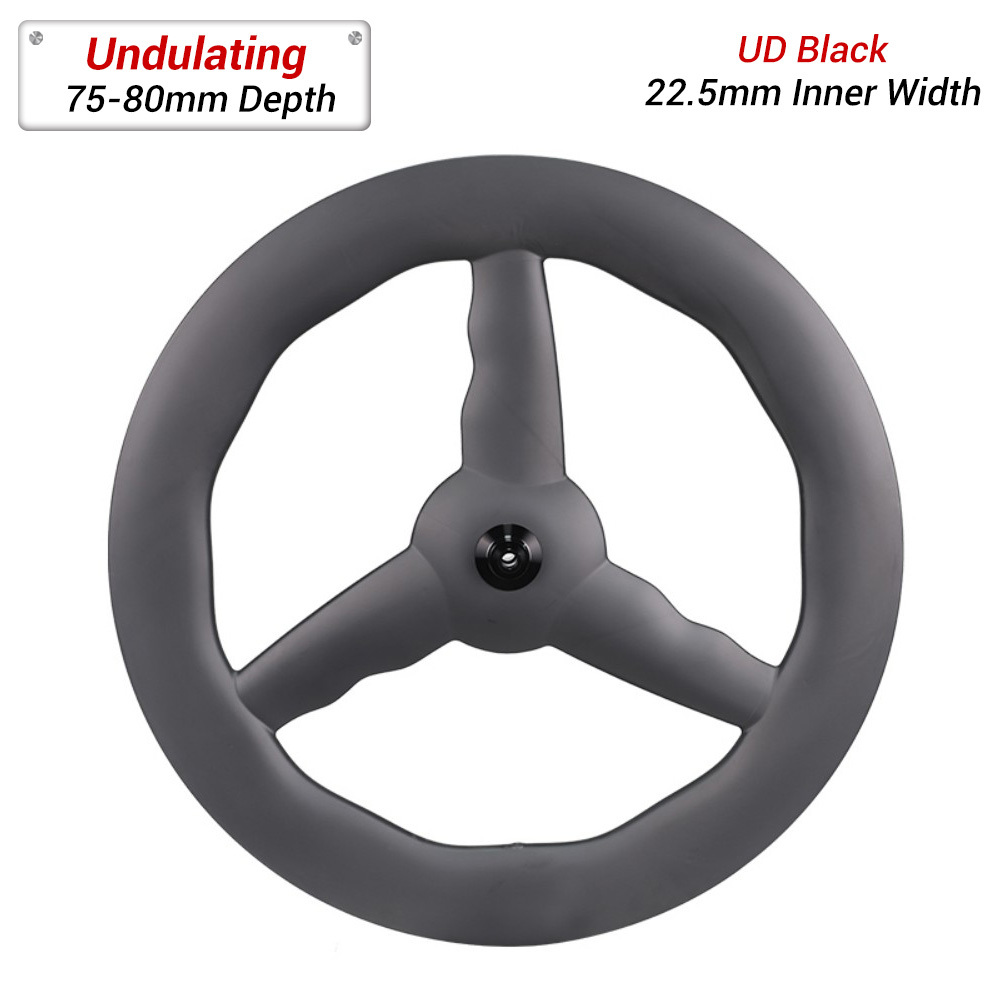

Wavy Undulating Rim Profile Featuring a moderate 75–80mm depth for speed-focused riding, this design cuts crosswind drag better than ultra-deep wheels.
It is perfectly suited for time trials, triathlons and high-intensity road racing. The distinctive fluctuating rim depth breaks up air flow and lessens turbulent wind, bringing superior overall aero efficiency.
Aero-optimized Carbon Spokes These spokes adopt a tapered aerodynamic contour, narrowing from 10mm to 5mm.
They effectively minimize wind drag while keeping outstanding structural strength, securing steady handling during sprints and fast descents.

◂ Hubs ▸

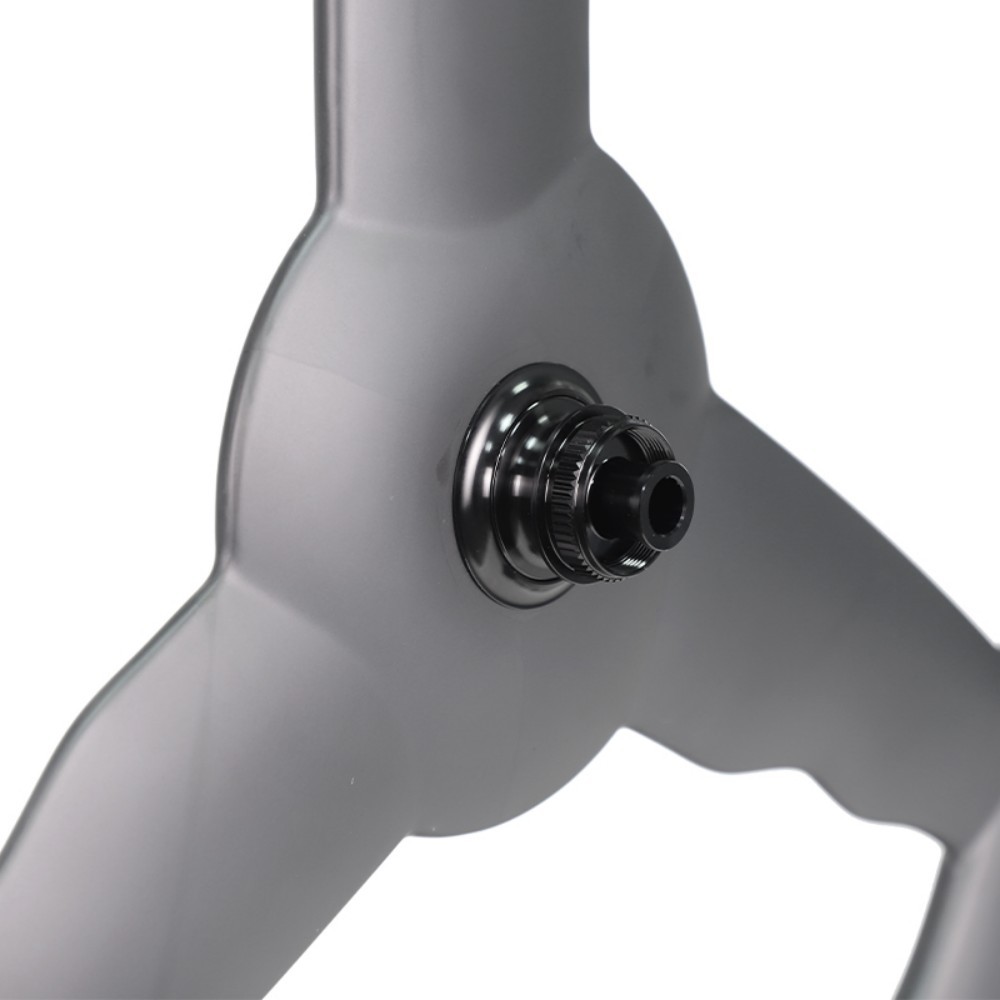

Premium OEM PX hubs are produced by a carefully vetted Taiwanese hub maker and equipped with a 36-tooth ratchet engagement structure.
This hub series is fully compatible with rim brake, disc brake and fixed gear track setups respectively. Every model features a precision-built, heavy-duty ratchet freehub mechanism.
It optimizes power transmission and greatly cuts rolling resistance, allowing for quicker acceleration and reduced rider fatigue. This proven ratchet design is widely adopted across top-tier hub brands, including DT Swiss.
As for the rear hub driver body, multiple options are available: Shimano HG 11/12-speed and SRAM 12-speed XDR freehub bodies for flexible compatibility.

	Carbon Fiber MaterialPremium Toray T700 carbon fiber are used in our road carbon 3-spoke wheels. Combining with stable resin system to make consistent quality and high strength 3 spoke wheels.		Tubeless ReadyTubeless setups have grown increasingly popular for carbon time trial and track wheels, thanks to their superior grip, decreased rolling resistance, and smoother ride quality. Our 3 spoke road wheels are fully tubeless-ready while remaining compatible with standard clincher tires and inner tubes. Revised anti-burp hump structure enables effortless tire installation, removal and inflation, delivering a more convenient user experience.
	Wider Inner WidthRelatively wider 22.5mm inner width, make it possible to fit multiple sizes of tire. Normally road tire size 700x28C are recommended		Disc BrakeAvailable in rim brake and disc brake options.
	2-Year Warranty Our production process includes strict quality control and comprehensive testing to ensure reliable performance. All ProX carbon rims and wheels are backed by a 2-year warranty from the date of delivery. Full details are on our Warranty Policy page.
