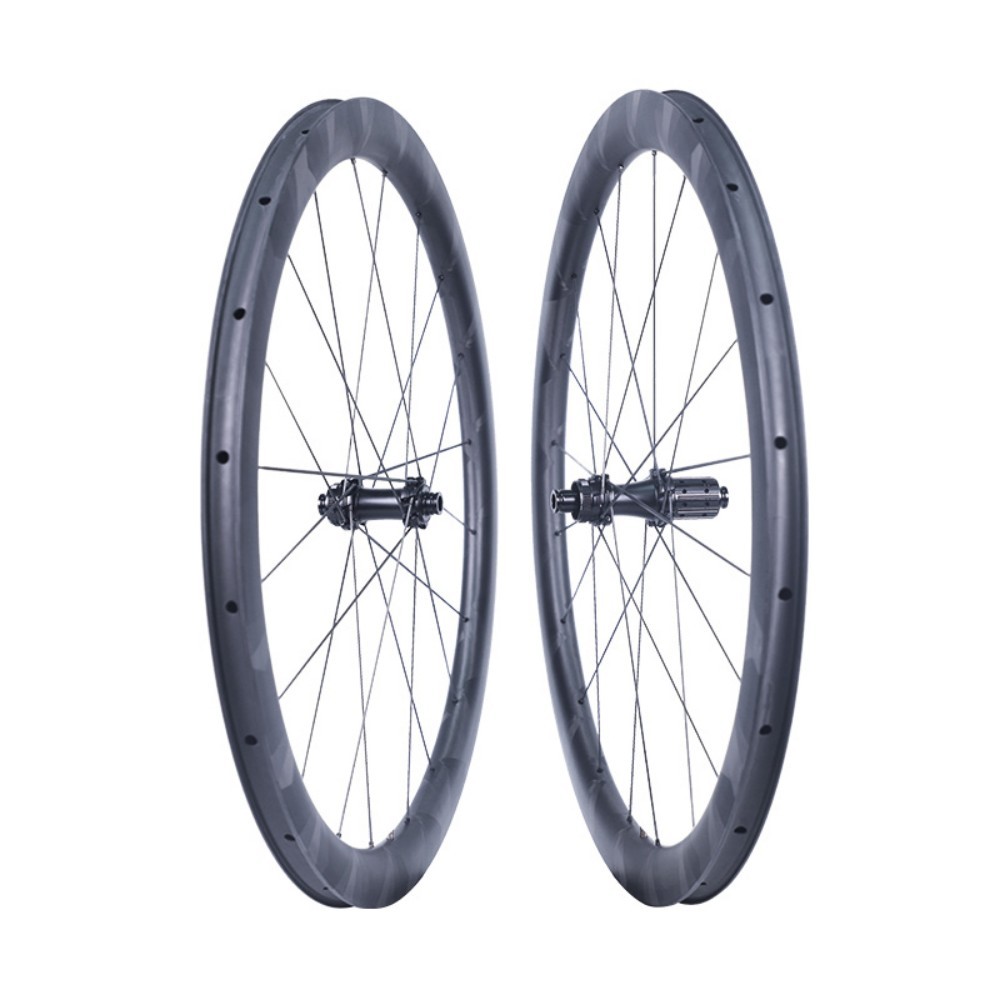

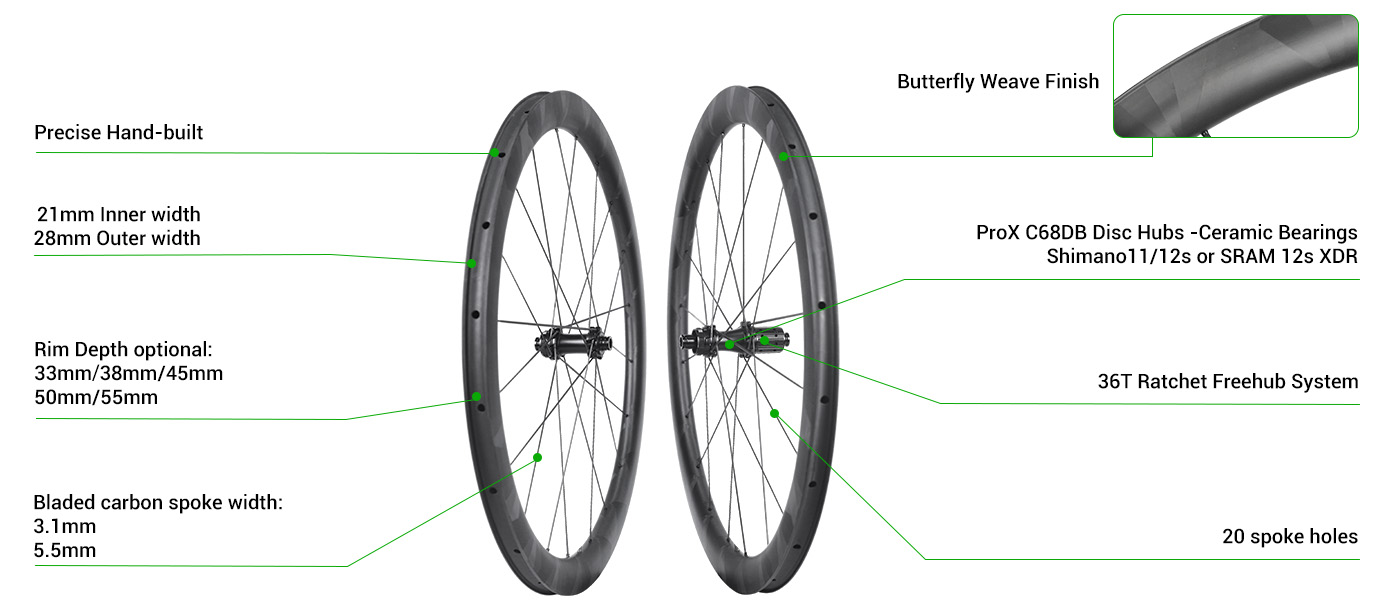

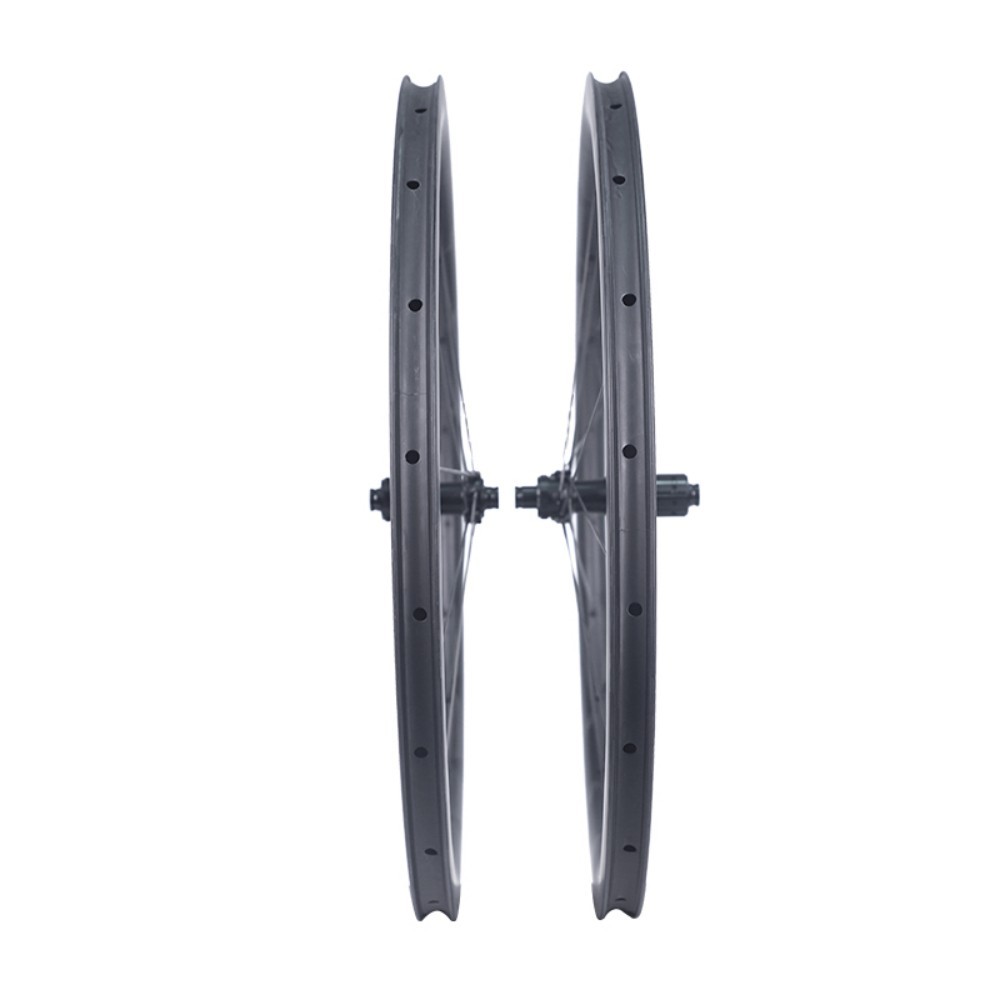

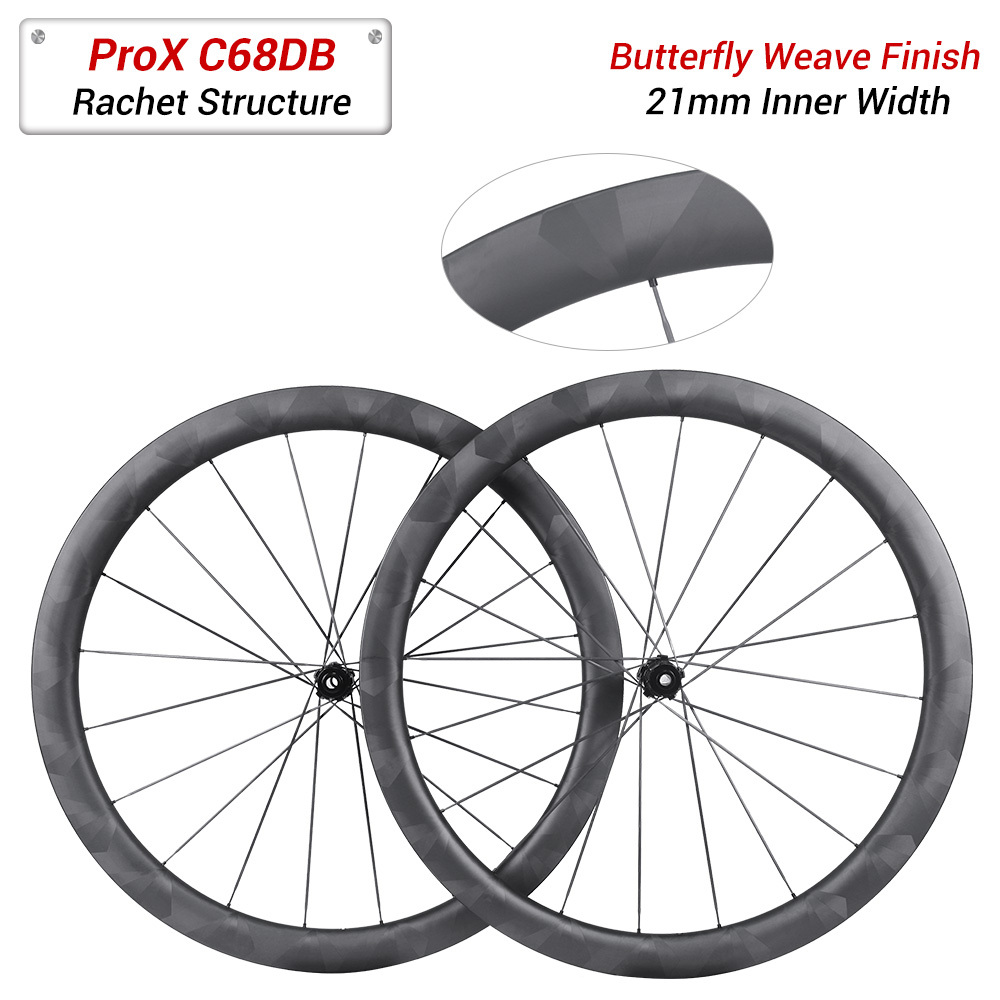

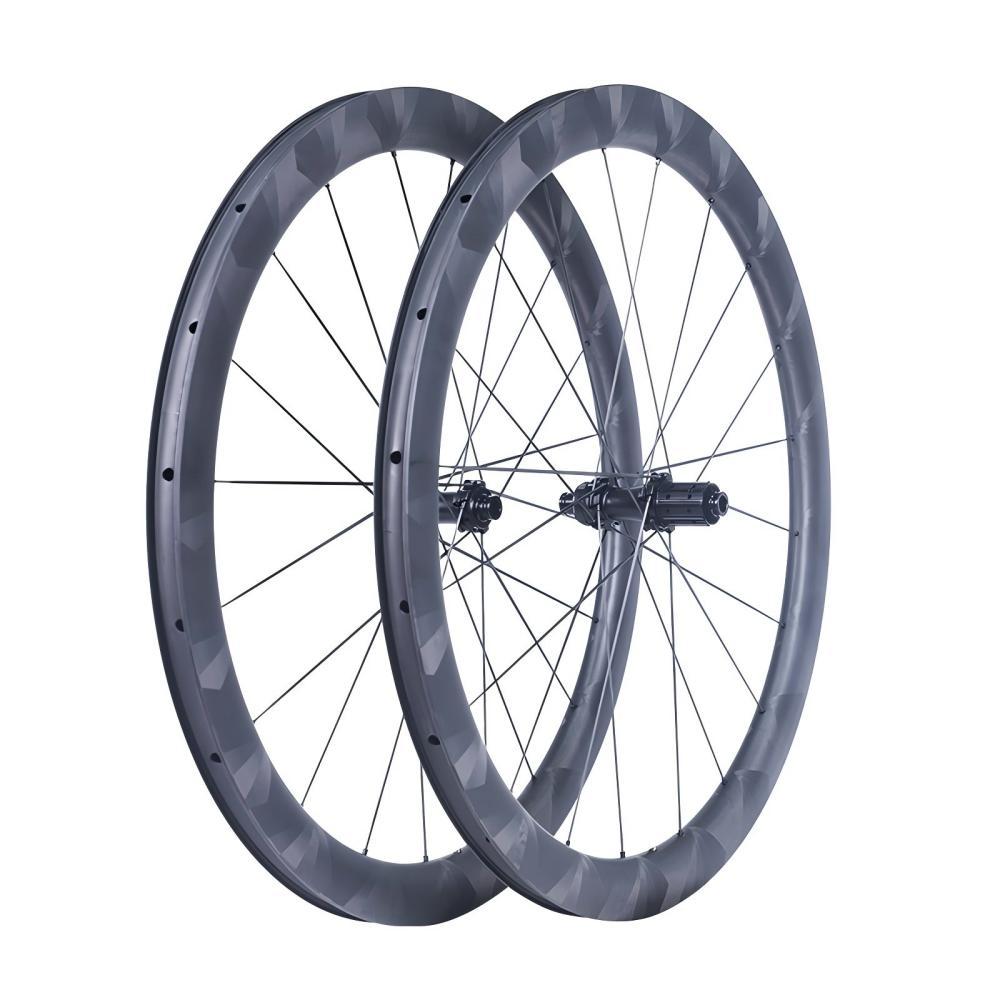

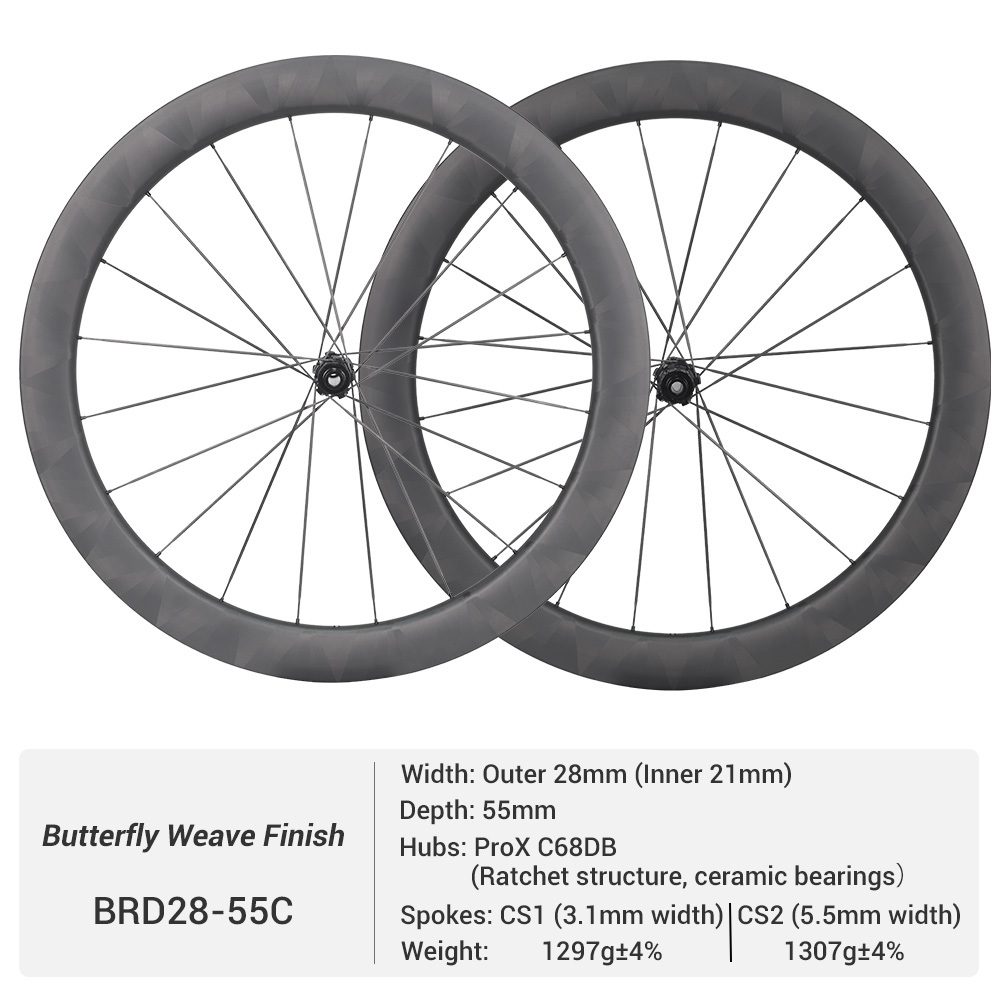

ProX C68DB Ultra Light Butterfly Weave Carbon Wheels | Full Carbon Spoke Disc Brake Wheels

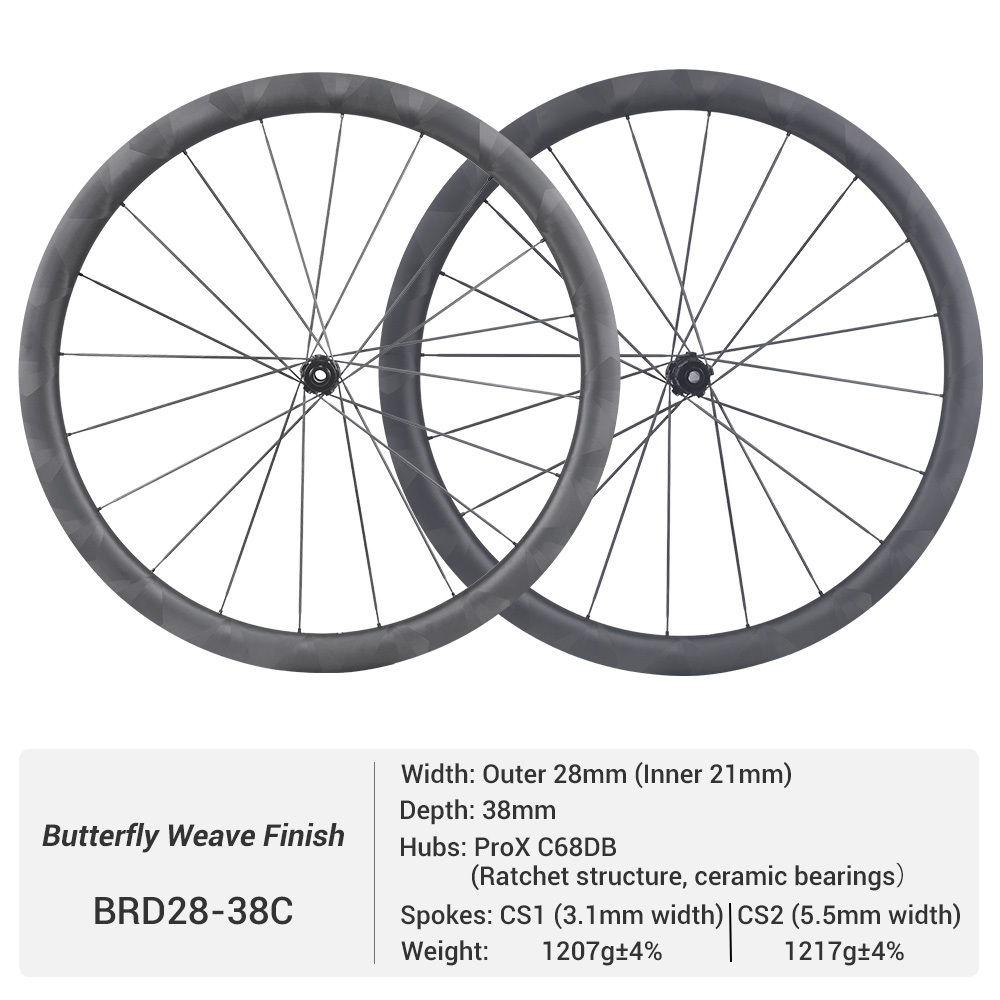

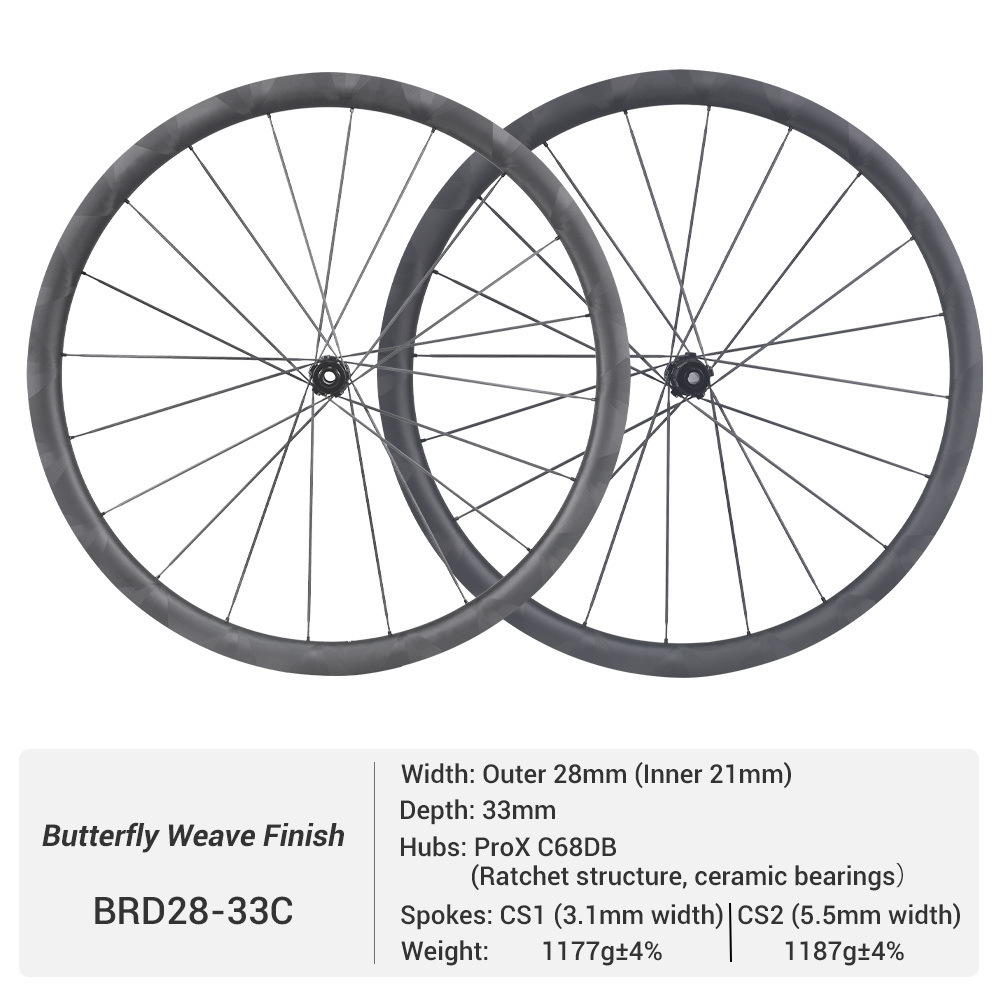

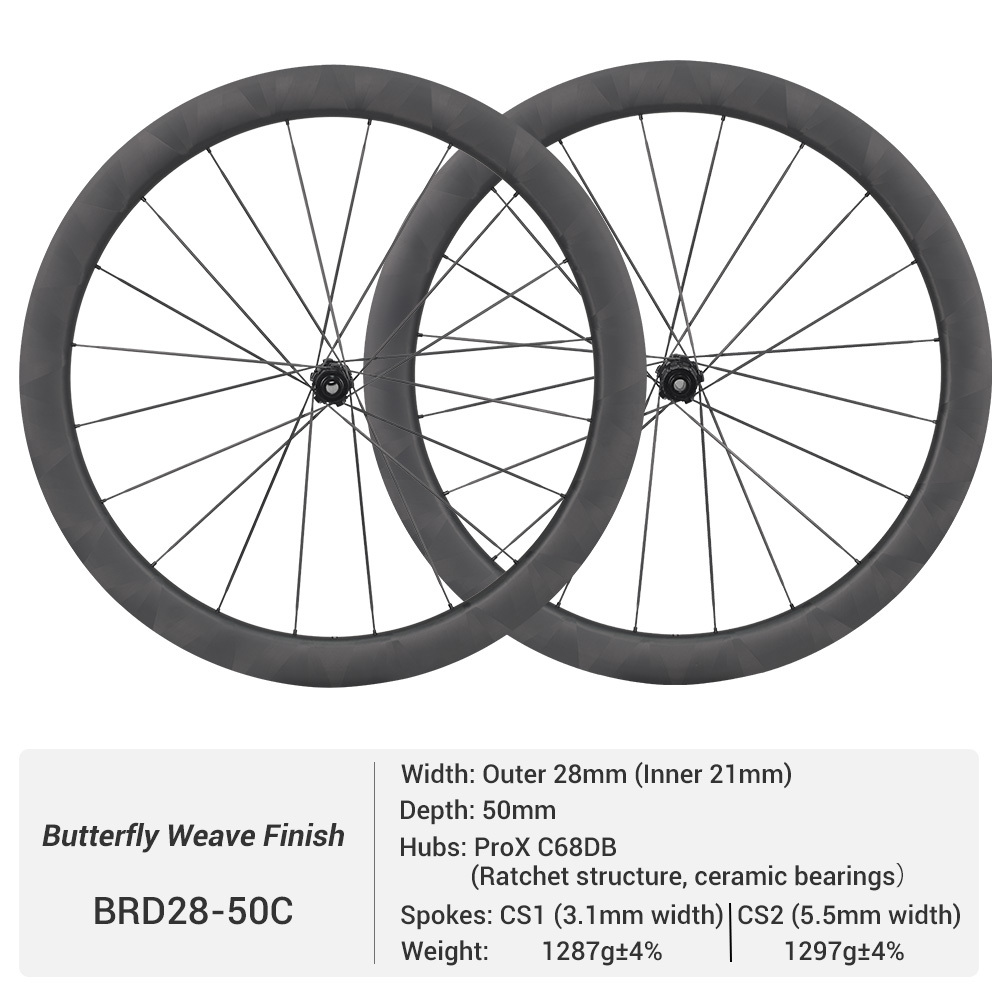

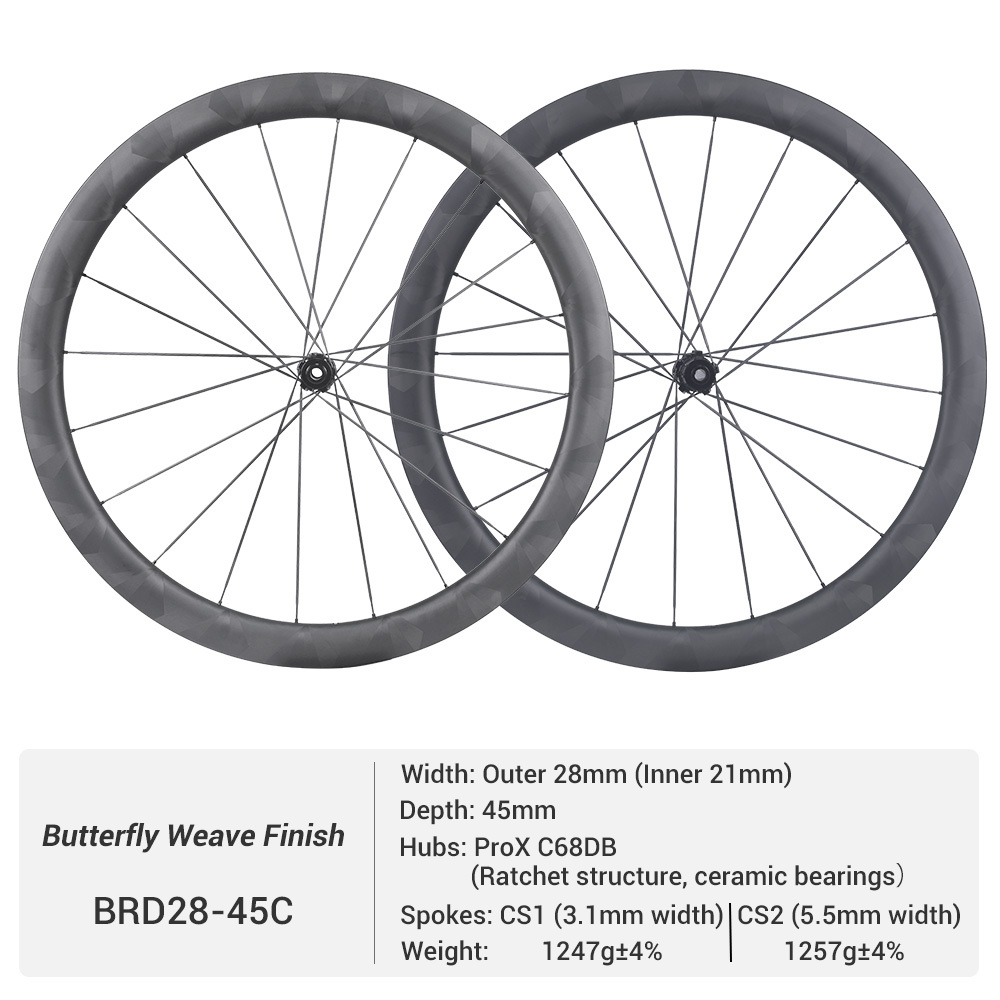

| Wheel Model | C68DB-BRD28-33C | C68DB-BRD28-38C | C68DB-BRD28-45C | C68DB-BRD28-50C | C68DB-BRD28-55C |

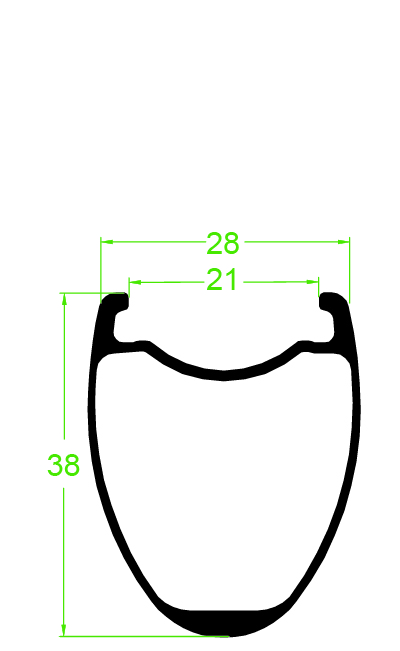

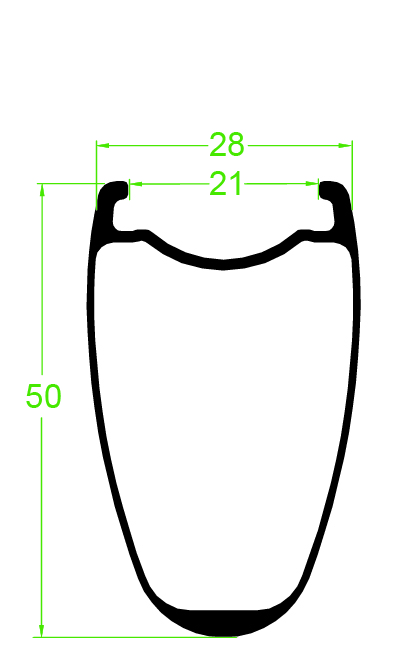

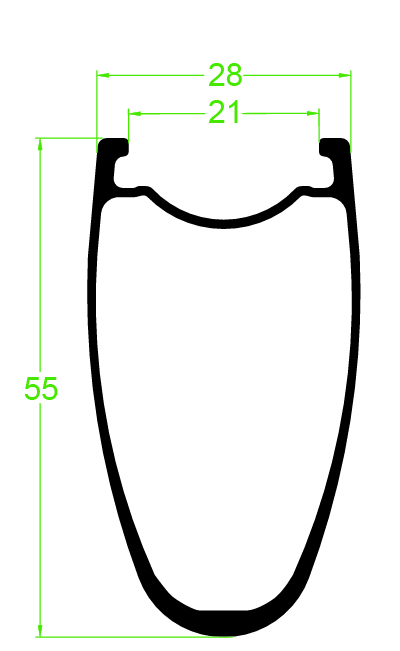

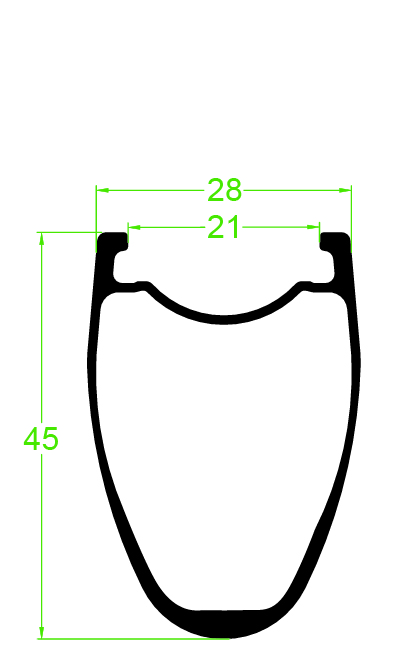

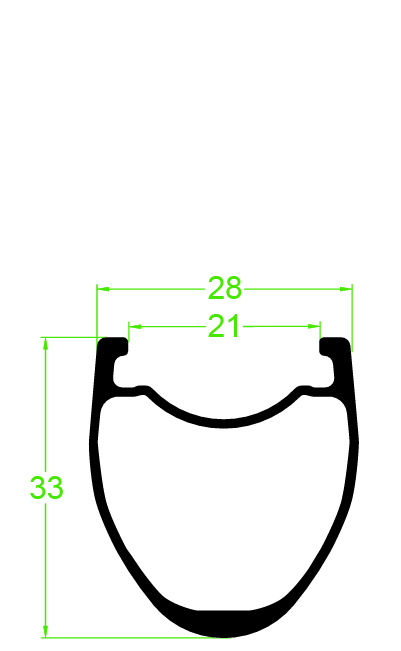

| Rim Sectional Drawing |  |
 |
 |
 |
 |
| Carbon Rim Model | BRD28-33C | BRD28-38C | BRD28-45C | BRD28-50C | BRD28-55C |
| Carbon Rim Depth | 33mm | 38mm | 45mm | 50mm | 55mm |
| Carbon Rim Width | 28mm Outer (21mm Inner) | 28mm Outer (21mm Inner) | 28mm Outer (21mm Inner) | 28mm Outer (21mm Inner) | 28mm Outer (21mm Inner) |
| Carbon Rim Surface | Butterfly Weave Finish | Butterfly Weave Finish | Butterfly Weave Finish | Butterfly Weave Finish | Butterfly Weave Finish |
| Carbon Rim Material | Toray T800+T1000 Carbon | Toray T800+T1000 Carbon | Toray T800+T1000 Carbon | Toray T800+T1000 Carbon | Toray T800+T1000 Carbon |
| Carbon Spokes | CS1(3.1mm width) CS2(5.5mm width) |
CS1(3.1mm width) CS2(5.5mm width) |
CS1(3.1mm width) CS2(5.5mm width) |
CS1(3.1mm width) CS2(5.5mm width) |
CS1(3.1mm width) CS2(5.5mm width) |
| Wheel Weight (+/-3%) | 1177g | 1187g | 1207g | 1217g | 1247g | 1257g | 1287g | 1297g | 1297g | 1307g |
| Front/Rear Hubs | ProX C68DB | ProX C68DB | ProX C68DB | ProX C68DB | ProX C68DB |
| Front/Rear Hub Size | 12x100mm/12x142mm | 12x100mm/12x142mm | 12x100mm/12x142mm | 12x100mm/12x142mm | 12x100mm/12x142mm |
| Front/Rear Holes Count | 20H/20H | 20H/20H | 20H/20H | 20H/20H | 20H/20H |
| Brake Type | Disc Brake (Center Lock) | Disc Brake (Center Lock) | Disc Brake (Center Lock) | Disc Brake (Center Lock) | Disc Brake (Center Lock) |
| Tire Type | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher |
| Tire Size (Recommended) | 700x28C-45C | 700x28C-45C | 700x28C-45C | 700x28C-45C | 700x28C-45C |
| Max Weight Limit | 100kg/220lb | 100kg/220lb | 105kg/230lb | 110kg/242lb | 115kg/242lb |
◂ Spokes ▸
Carbon spokes CS1 weigh 2.9g/pc, 3.2g plus aluminum nipple (1.8g lighter than Sapim CX-Ray spoke with nipple).
If choose carbon spokes to CS2 (5.5mm width), Weight +10g/pair.
The carbon spoke provides both higher stiffness and better fatigue life compared to the traditional steel spokes.
The max spoke tension of the carbon spoke is 528kgf according to our in-lab test, which is much higher than regular steel spokes (typically under 400kgf).
 |

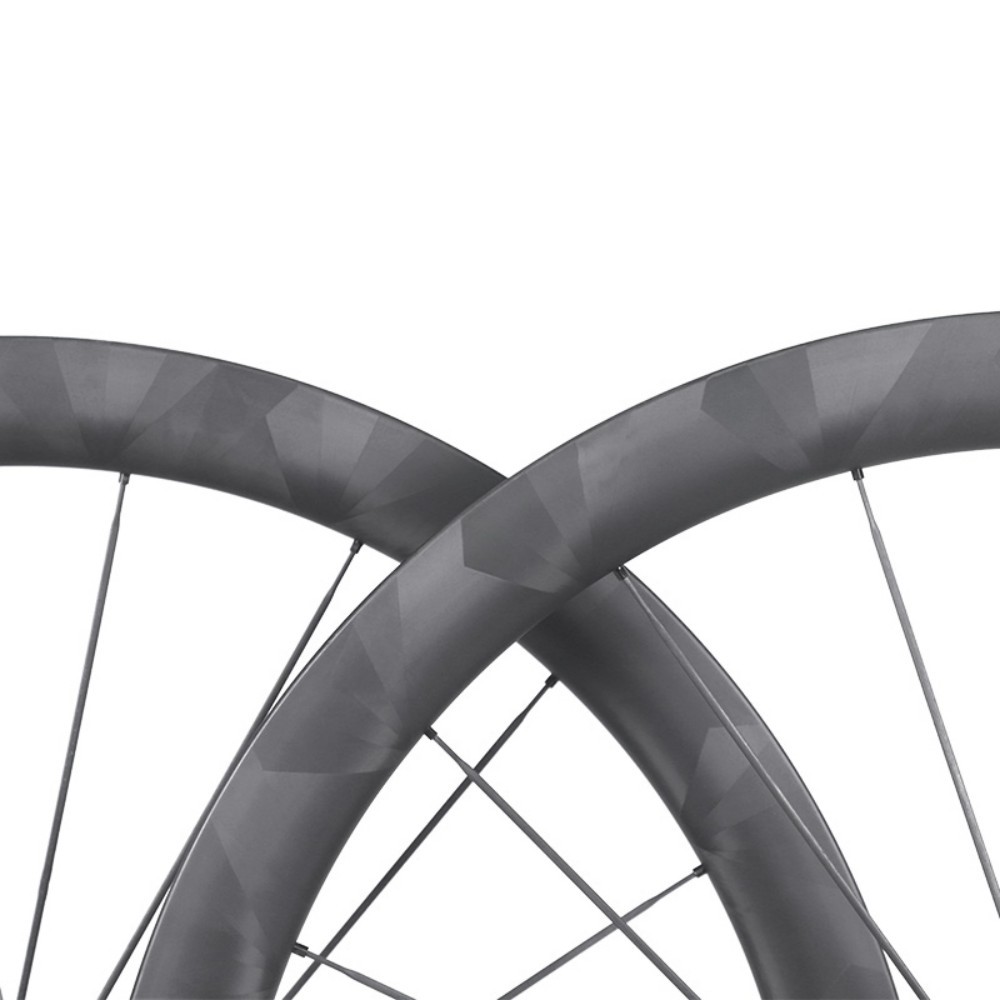

Carbon Fiber MaterialThis series carbon road rim is manufactured using premium Toray T800 and T1000 carbon fiber, combined with a stable resin system to ensure consistent quality and a lightweight structure for road cycling. Unique butterfly weave. |  |
Light Weight Design A carefully engineered lay-up structure using Toray T800 and T1000 carbon prepreg enables a lightweight carbon road rims. Excess material is minimized to reduce weight, while reinforcement around the spoke holes ensures structural strength. The result is low weight without compromising strength or stiffness. |
 |
Wider Inner WidthWith a 21mm internal width, such road carbon rims are optimized for modern 700×28C–35C tires and remain compatible with even wider tires. The increased width provides better tire support, simplifies installation and removal, and enhances traction and cornering stability. |  |
Aero U-Shape Profile The wide U-shaped rim profile offers improved aerodynamic efficiency compared to traditional V-shaped designs, helping to reduce drag at higher speeds. It also enhances airflow stability in crosswinds, while contributing to increased stiffness and overall structural strength. |
 |
Bead Lock Design Subtle ridges along both sides of the carbon rim channel—known as bead locks—help facilitate easier tubeless tire inflation. Combined with a hooked bead design, they ensure a secure tire fit and reduce the risk of blowouts. |  |
Tubeless Ready Tubeless setups are increasingly popular for road bike wheelset due to improved grip, lower rolling resistance, and enhanced comfort. All of our carbon clincher road rims are tubeless compatible while still supporting standard inner tubes. An optimized anti-burp profile ensures straightforward tire installation, removal, and inflation. |
 |

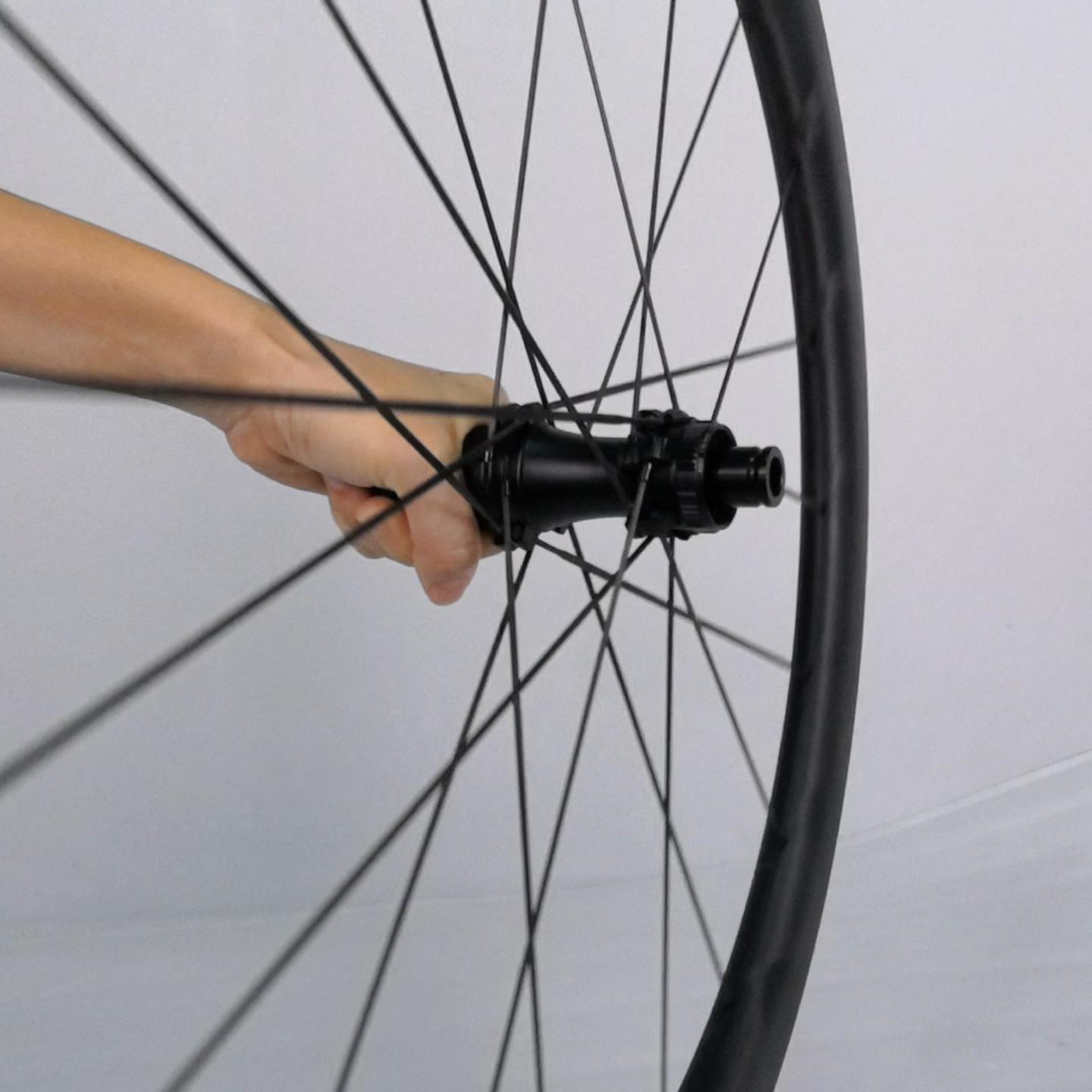

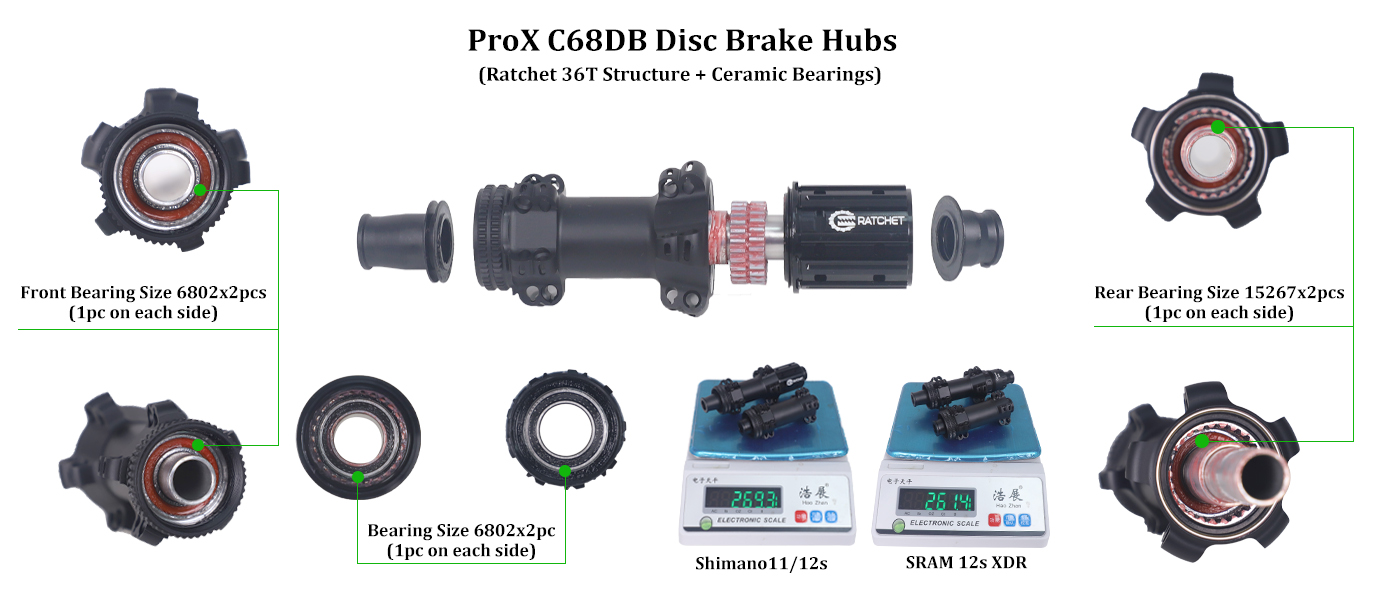

ProX C68DB HubsProX C68DB road disc brake hubs are designed specifically for full carbon spokes, delivering ultra-lightweight performance and exceptionally smooth operation. Equipped with a 54T ratchet system, ceramic bearings for low rolling resistance and high-performance rotation. Custom logo etching is available upon request. |  |
ProX Carbon SpokesProX full carbon spokes CS1 (3.1 mm) and CS2 (5.5 mm) are utilized. Compared to traditional steel spokes, carbon spokes offer improved aerodynamics, higher stiffness, and enhanced fatigue resistance. Their optimized aero profile, combined with high elasticity, helps reduce drag and improve efficiency. |
 |
Disc BrakeDisc brake provide more precise and consistent braking than rim brakes. These carbon rims are purpose-built for disc use, eliminating the brake track and avoiding heat-related issues. A dedicated carbon lay-up enhances durability while keeping weight low. |  |
2-Year Warranty Our production process includes strict quality control and comprehensive testing to ensure reliable performance. All ProX carbon rims and wheels are backed by a 2-year warranty from the date of delivery. Full details are on our Warranty Policy page. |
