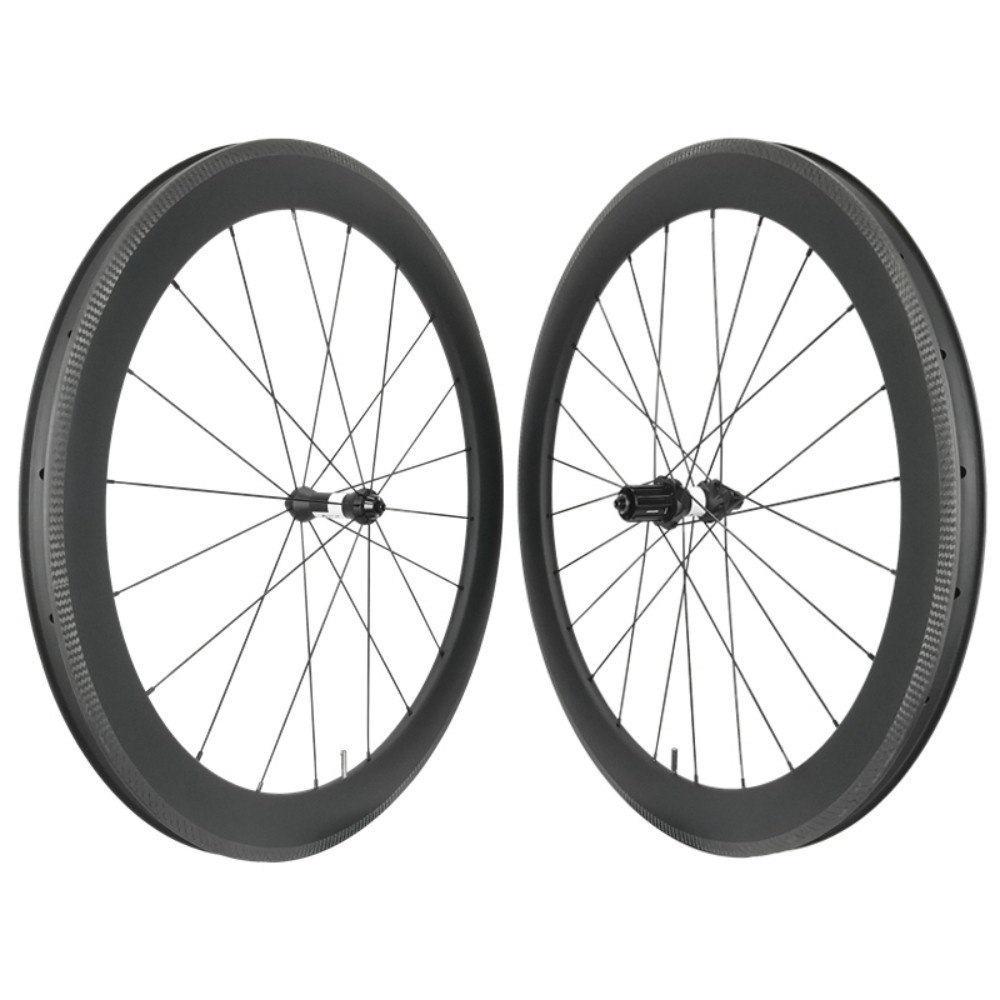

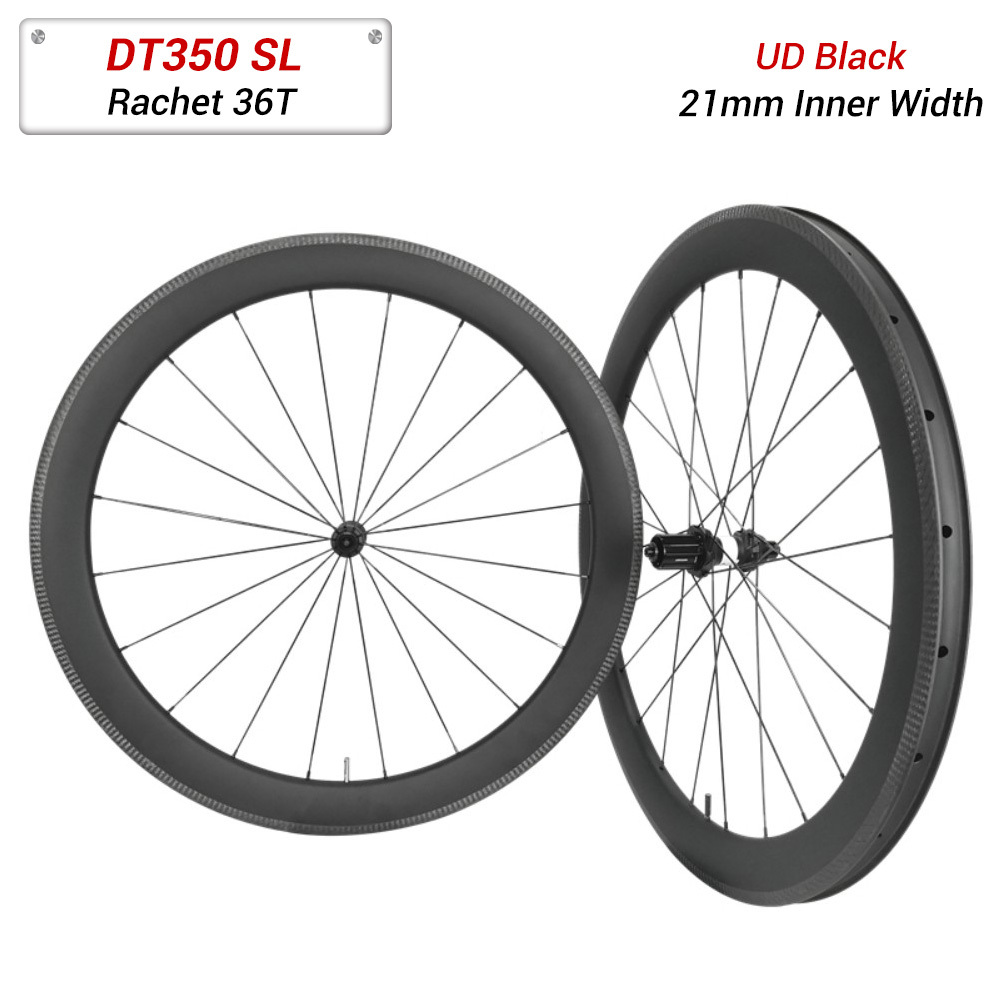

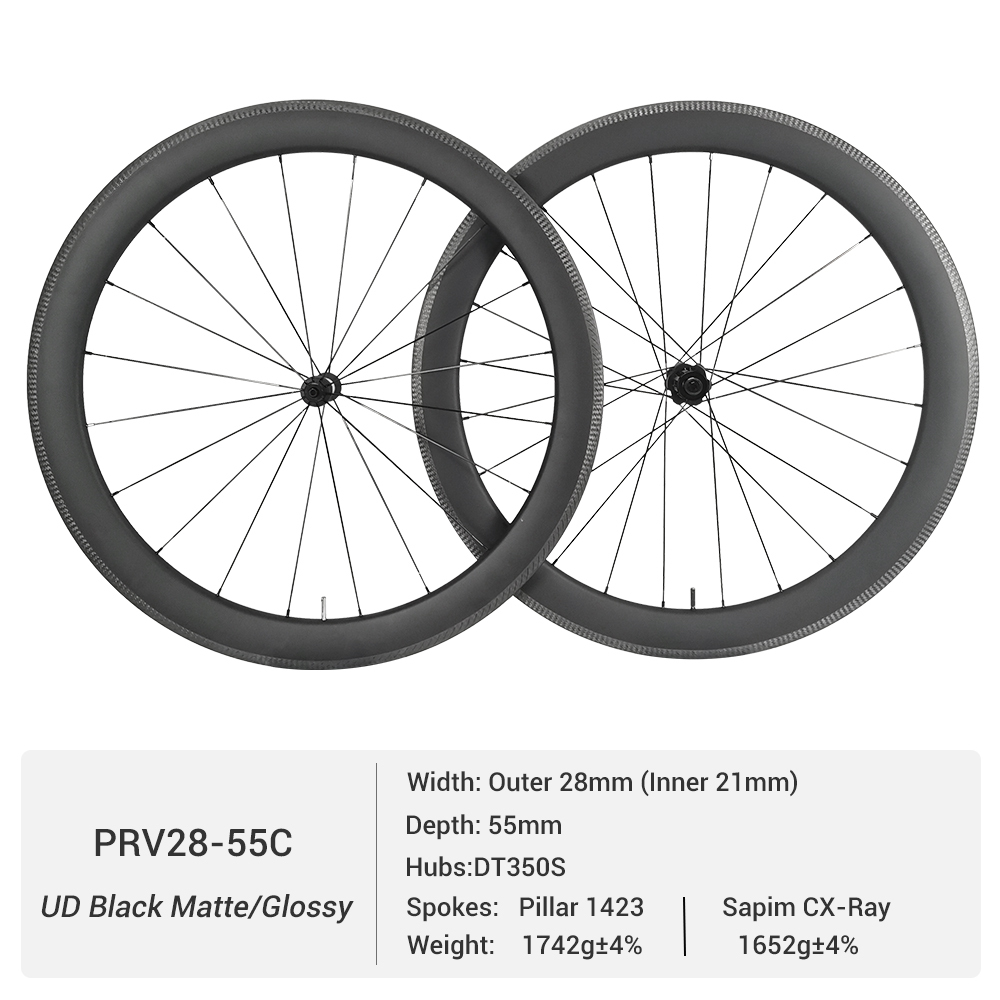

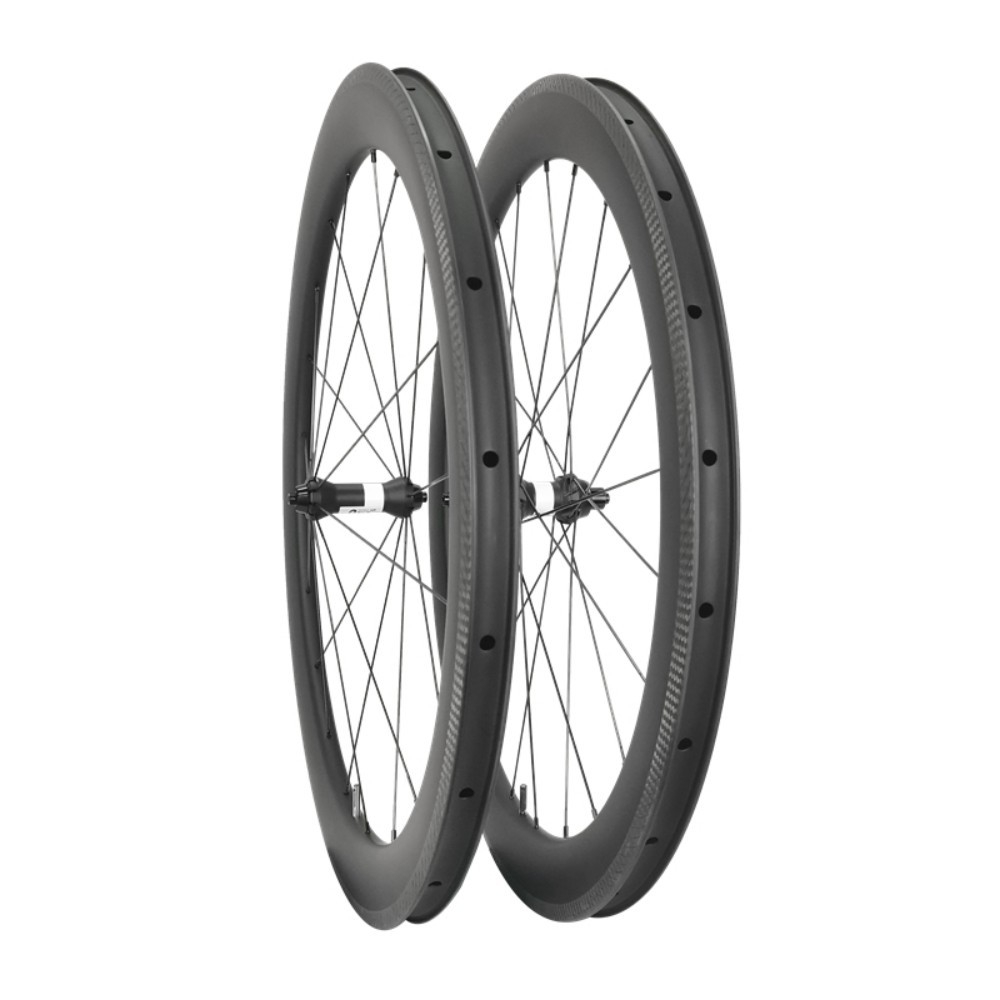

ProX DT350 Carbon Road Wheelset | Rim Brake Upper Mid-range Reliable Carbon Wheels For Training

Performance DT Swiss 350SL road hubs, Ratchet freehub
28mm outer / 21mm inner width road carbon rims
Rim depth options: 33mm /38mm /44mm /50mm /55mm
Optional spokes: Pillar 1423 or Sapim CX-Ray
Tubeless ready, for 700C 28C-45C tires

$639.00

Received successfully

Coupon Code

Please select the information you want X

Road Carbon Rims Front & Rear:

RPV28-33C (28mm outer width 33mm depth rim)

RPV28-38C (28mm outer width 38mm depth rim)

RPV28-44C (28mm outer width 44mm depth rim)

RPV28-50C (28mm outer width 50mm depth rim)

RPV28-55C (28mm outer width 55mm depth rim)
Carbon Rim Finish:

UD Black Matte Finish

UD Black Glossy Finish
PROX Decals On Carbon Rims:

No Decal

Black Glossy

White Glossy
Hubs:

ProX 350S (Front 5x100mm 20Holes/Rear 5x130mm 24Holes)
Hub Structure:

Ratchet 36T
Freehub Body:

Shimano 11/12s HG

Sram 12/13s XDR
Spokes:

Pillar 1423

Sapim CX-Ray+US$70
Nipples:

Aluminum Black (carbon spoke specific)
Spare Spokes+Nipples:

No Need

4 pcs (1 for each side) +US$16

8 pcs (2 for each side) +US$32
Tubeless Valve (Presta):

No Need

Length 44mm +US$10

Length 60mm +US$10

Length 80mm +US$10

Quantity:

Add to Favorites

1/1

Description

ProX DT350 Carbon Road Wheelset | Rim Brake Upper Mid-range Reliable Carbon Wheels For Training

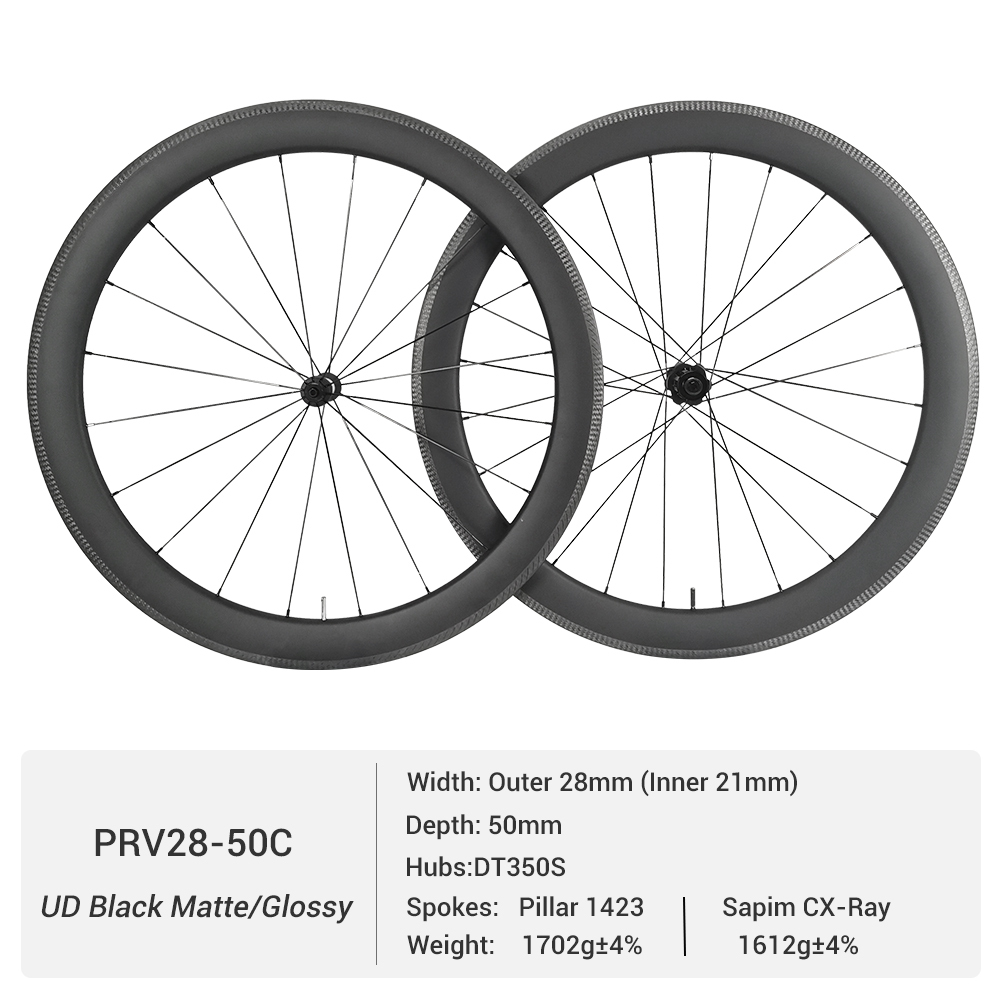

Wheel Model	350S-PRV28-33C	350S-PRV28-38C	350S-PRV28-44C	350S-PRV28-50C	350S-PRV28-55C

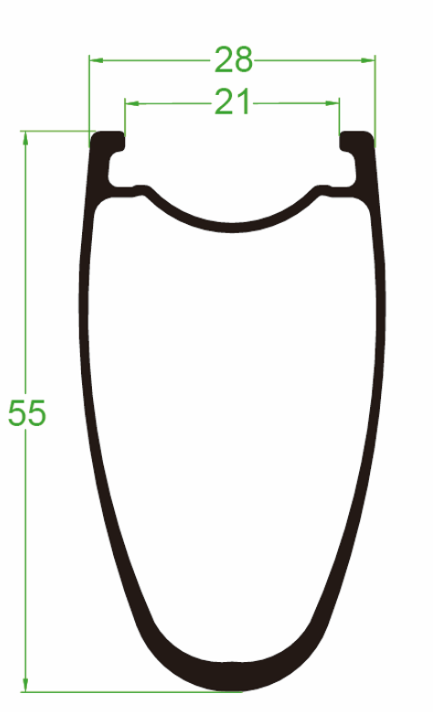

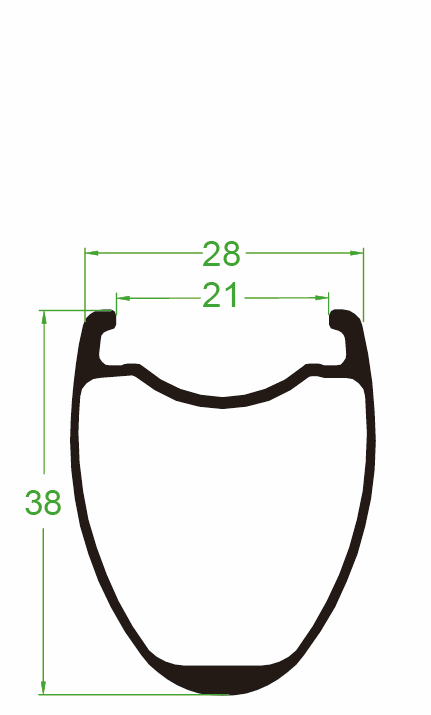

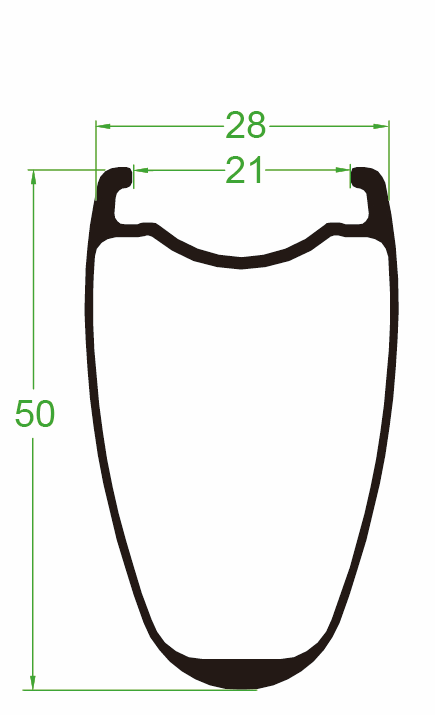

Rim Sectional Drawing
Carbon Rim Model	PRV28-33C	PRV28-38C	PRV28-44C	PRV28-50C	PRV28-55C
Carbon Rim Depth	33mm	38mm	44mm	50mm	55mm
Carbon Rim Width	28mm Outer (21mm Inner)	28mm Outer (21mm Inner)	28mm Outer (21mm Inner)	28mm Outer (21mm Inner)	28mm Outer (21mm Inner)
Carbon Rim Surface	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish
Carbon Rim Material	Toray T700 Carbon	Toray T700 Carbon	Toray T700 Carbon	Toray T700 Carbon	Toray T700 Carbon
Carbon Spokes	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray
Wheel Weight (+/-3%)	1602g \| 1512g	1622g \| 1532g	1642g \| 1552g	1702g \| 1612g	1742g \| 1652g
Front/Rear Hubs	350S	350S	DT350S	DT350S	DT350S
Front/Rear Hub Size	5x100mm QR/5x130mm QR	5x100mm QR/5x130mm QR	5x100mm QR/5x130mm QR	5x100mm QR/5x130mm QR	5x100mm QR/5x130mm QR
Front/Rear Holes Count	20H/24H	20H/24H	20H/24H	20H/24H	20H/24H
Brake Type	Rim Brake	Rim Brake	Rim Brake	Rim Brake	Rim Brake
Tire Type	Tubeless or Clincher	Tubeless or Clincher	Tubeless or Clincher	Tubeless or Clincher	Tubeless or Clincher
Tire Size (Recommended)	700x28C-45C	700x28C-45C	700x28C-45C	700x28C-45C	700x28C-45C
Max Weight Limit	110kg/242lb	115kg/253lb	120kg/265lb	120kg/265lb	120kg/265lb

◂ Rims ▸
The PRD28 series (28 mm external width) rims are constructed using premium Toray T700 and T800 carbon fiber, combined with a stable resin system to form a strong and lightweight foundation. The lay-up structure is further optimized by minimizing excess material wherever possible, while reinforcing high-stress areas such as the spoke holes. This approach achieves an effective balance between weight reduction and structural integrity. As a result, these rims deliver a lightweight build without sacrificing stiffness or strength.
The PRD28 series features a 28 mm external width (21 mm internal width) and are compatible with 700×28C-45C tires. Multiple depths are optional: 33 / 38 / 44 / 50 / 55 mm. Whether you prefer a shallow profile for climbing or a deeper rim for speed on flat terrain, the range offers a suitable option for different riding styles.

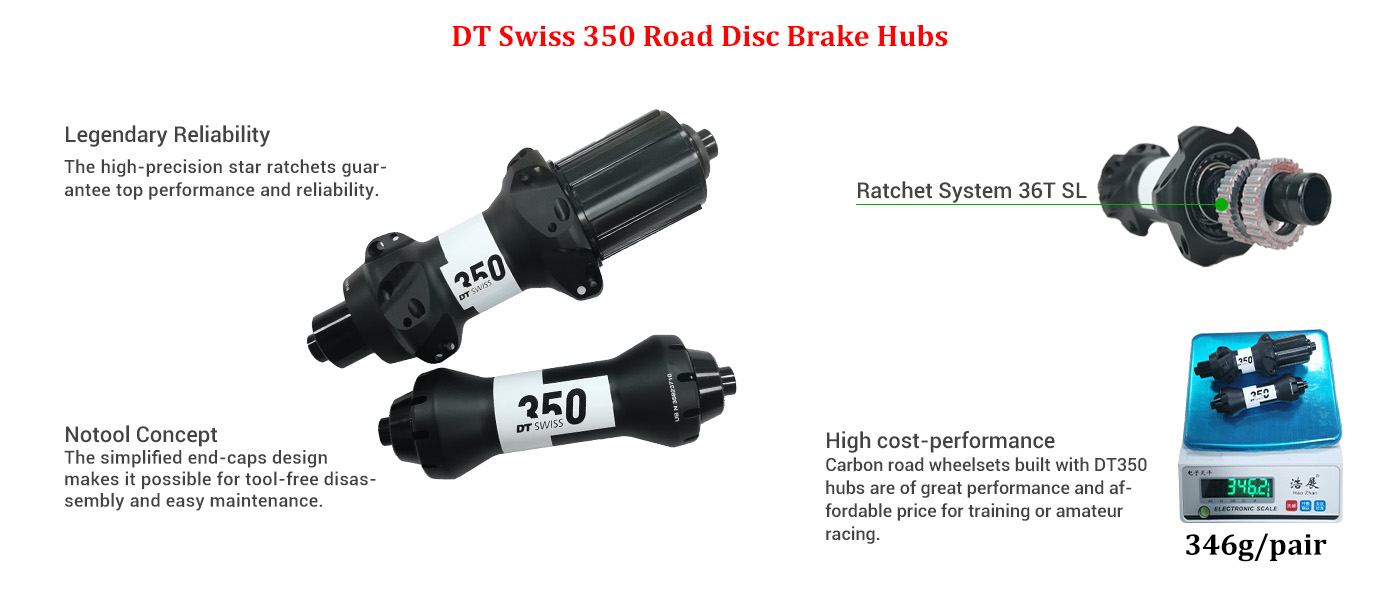

◂ Hubs ▸

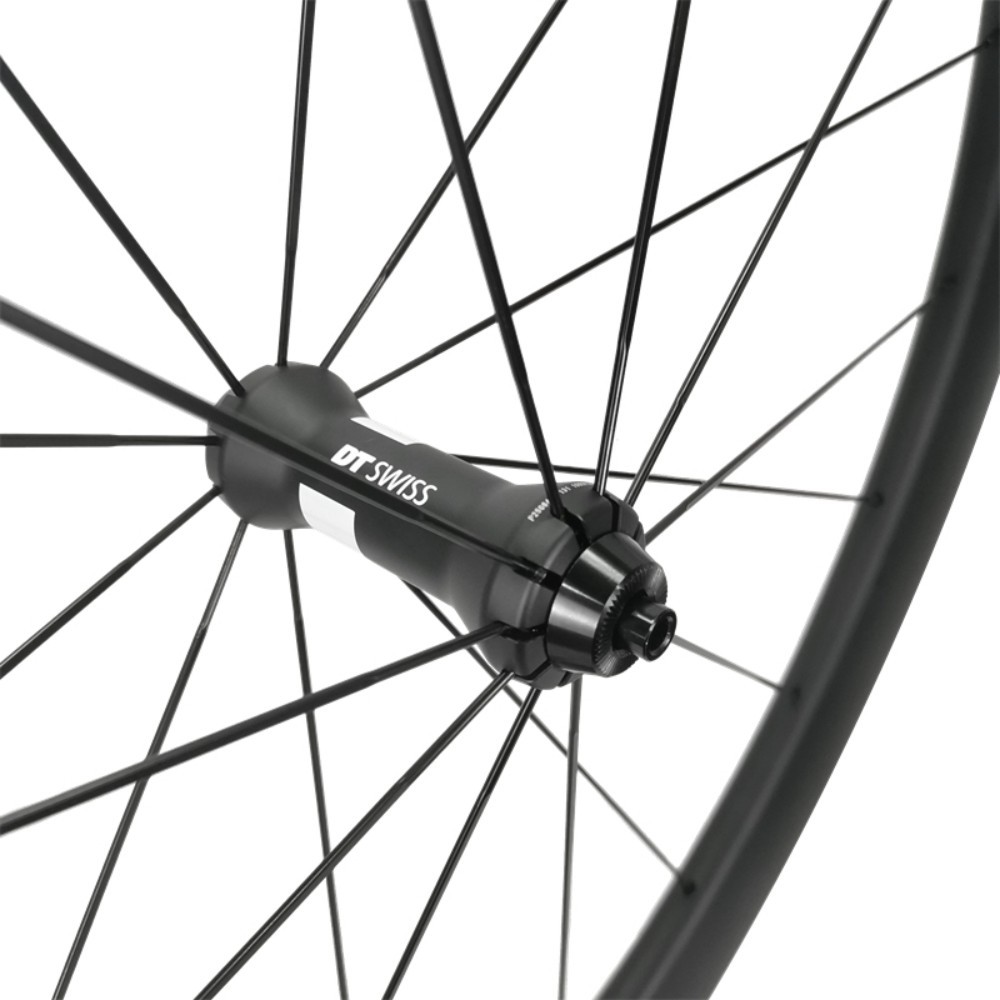

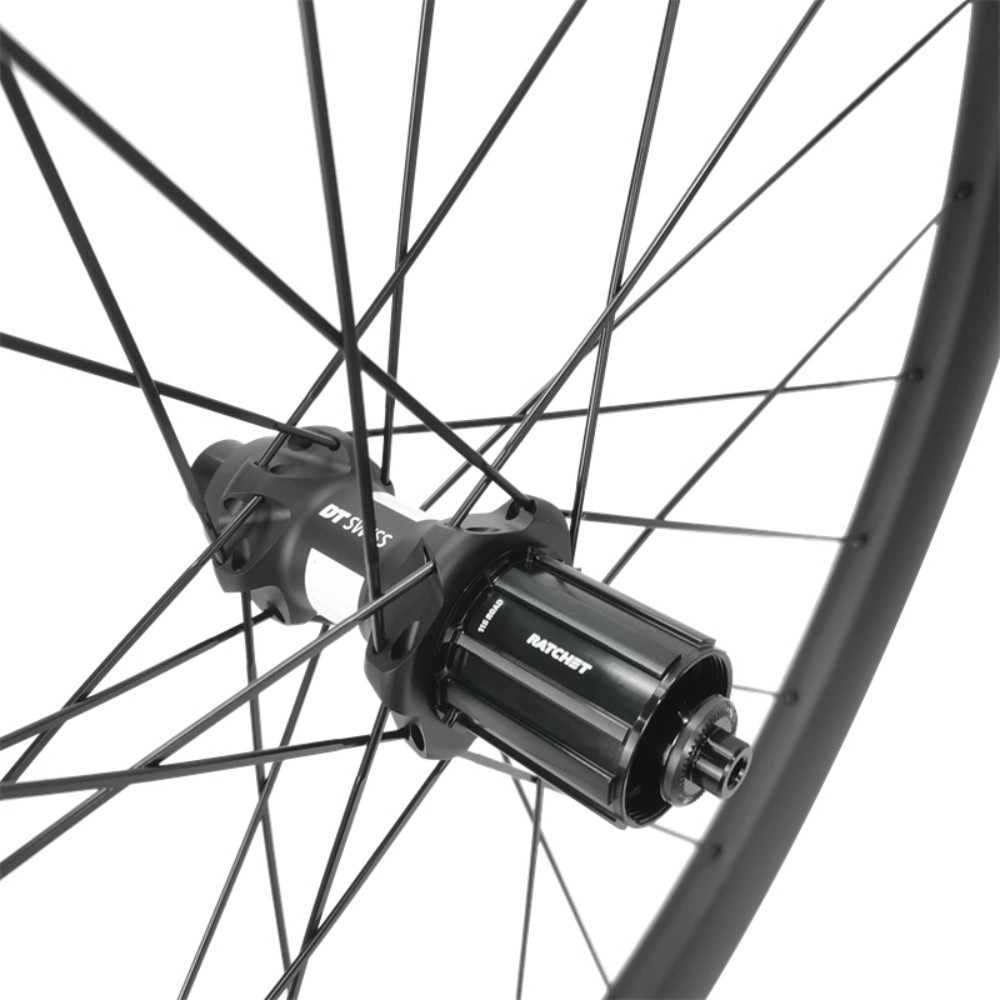

- DT Swiss 350SL road rim brake hubs are used. DT Swiss gravel wheels with great performance and competitive price.
- Straight pull spoke system and 20/24 spoke holes for both front and rear wheel.
- Front Hub 5x100mm QR & Rear Hub 5x130mm QR.

◂ Spokes ▸
The popular Pillar PSR AERO 1423 spokes are used.
Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.
Aero and strong, high elasticity and low drag coefficient.

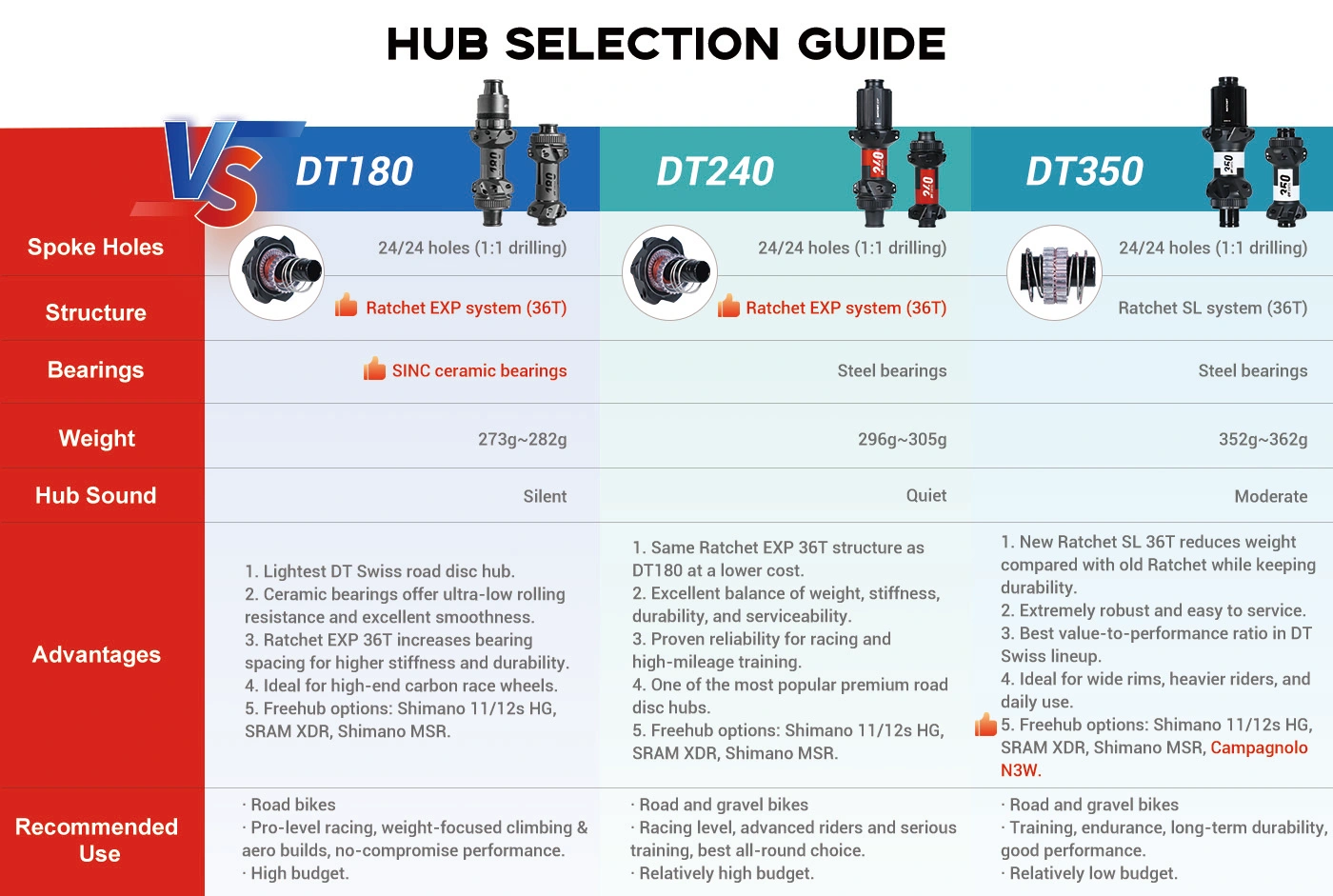

DT Swiss Hub 180 vs 240 vs 350

	Carbon Fiber Material Our carbon road rims are manufactured using premium Toray T700 and T800 carbon fiber, combined with a stable resin system to ensure consistent quality and a lightweight structure for road cycling.		Light Weight Design A carefully engineered lay-up structure using Toray T700 and T800 carbon prepreg enables a lightweight road carbon rims. Excess material is minimized to reduce weight, while reinforcement around the spoke holes ensures structural strength. The result is low weight without compromising strength or stiffness.
	Wider Inner Width With a 23mm internal width, these carbon rims are optimized for modern 700×30C–35C tires and remain compatible with even wider tires. The increased width provides better tire support, simplifies installation and removal, and enhances traction and cornering stability.		Aero U-Shape Profile The wide U-shaped rim profile offers improved aerodynamic efficiency compared to traditional V-shaped designs, helping to reduce drag at higher speeds. It also enhances airflow stability in crosswinds, while contributing to increased stiffness and overall structural strength.
	Bead Lock Design Subtle ridges along both sides of the carbon rim channel—known as bead locks—help facilitate easier tubeless tire inflation. Combined with a hooked bead design, they ensure a secure tire fit and reduce the risk of blowouts.		Tubeless Ready Tubeless setups are increasingly popular for road bike wheelset due to improved grip, lower rolling resistance, and enhanced comfort. All of our carbon clincher road rims are tubeless compatible while still supporting standard inner tubes. An optimized anti-burp profile ensures straightforward tire installation, removal, and inflation.
	DT Swiss 350 HubsDT Swiss 350 road rim brake hubs offer dependable performance at a competitive price point. Featuring the proven Ratchet System and straight-pull spoke design for efficient power transfer and long-term reliability.		Pillar SpokesPillar PSR AERO 1423 spokes are a popular choice for performance wheelsets. Their patented cold forging process increases strength by up to 20%, while maintaining a lightweight aero profile. Effective combination of elasticity, durability, and aerodynamics.
	Rim BrakeRim brakes feature a streamlined structure with fewer components, requiring minimal maintenance effort. They are also lighter in weight compared to disc brakes.		2-Year Warranty Our production process includes strict quality control and comprehensive testing to ensure reliable performance. All ProX carbon rims and wheels are backed by a 2-year warranty from the date of delivery. Full details are on our Warranty Policy page.
