ProX 98DB Economical Disc Brake for Bike 700C Aero Road Wheel

ProX 98DB Economical Disc Brake for Bike 700C Aero Road Wheel

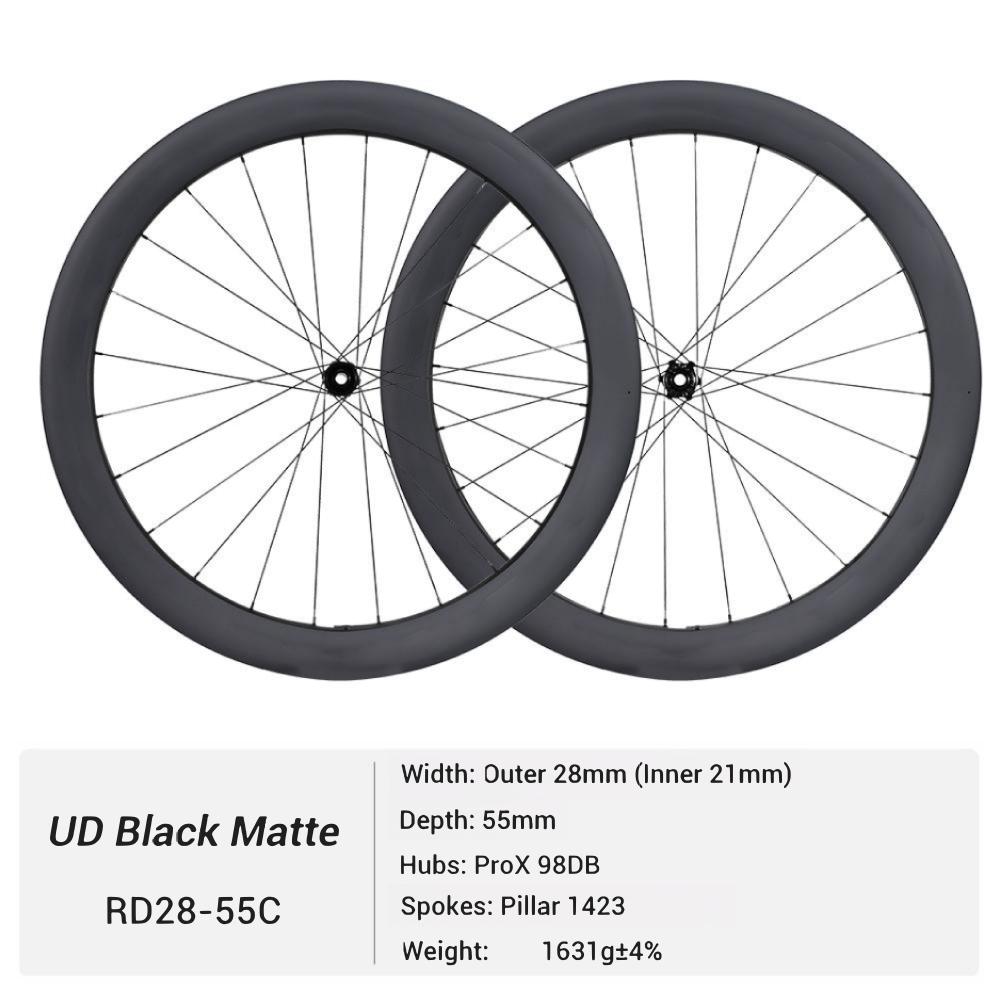

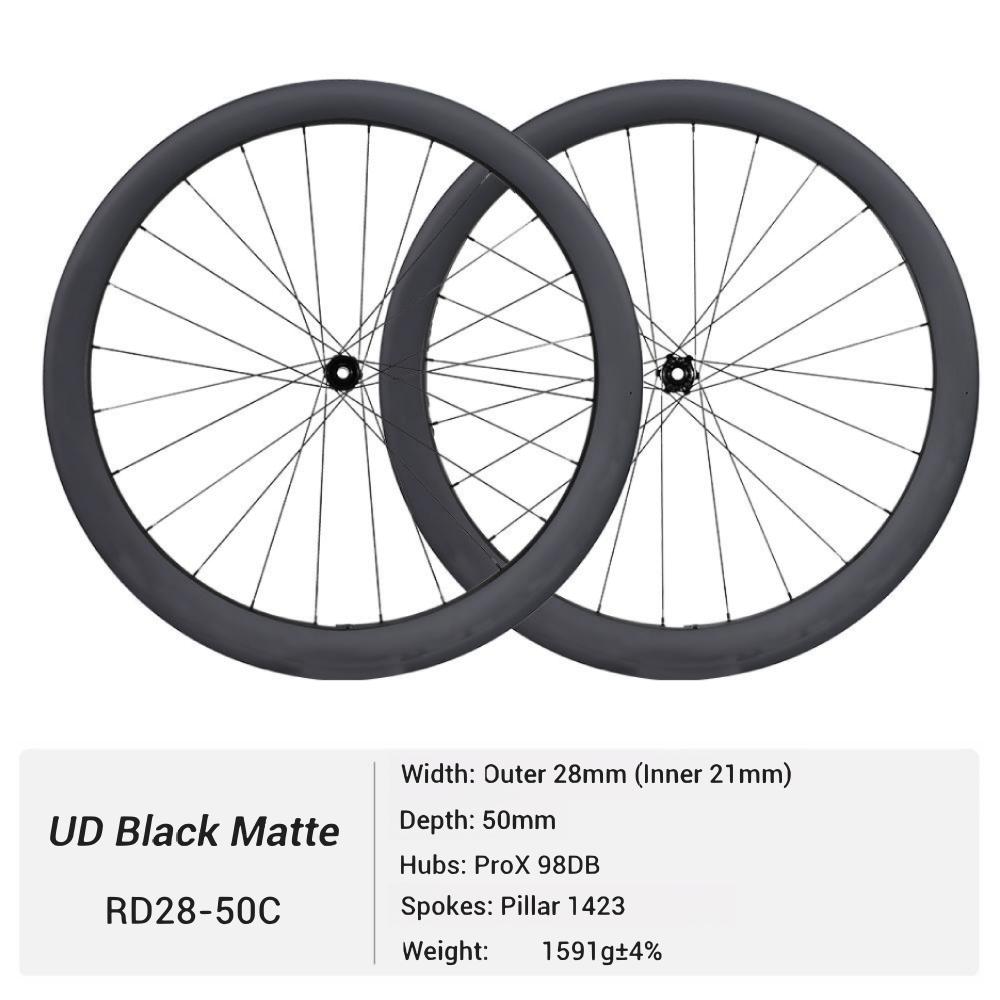

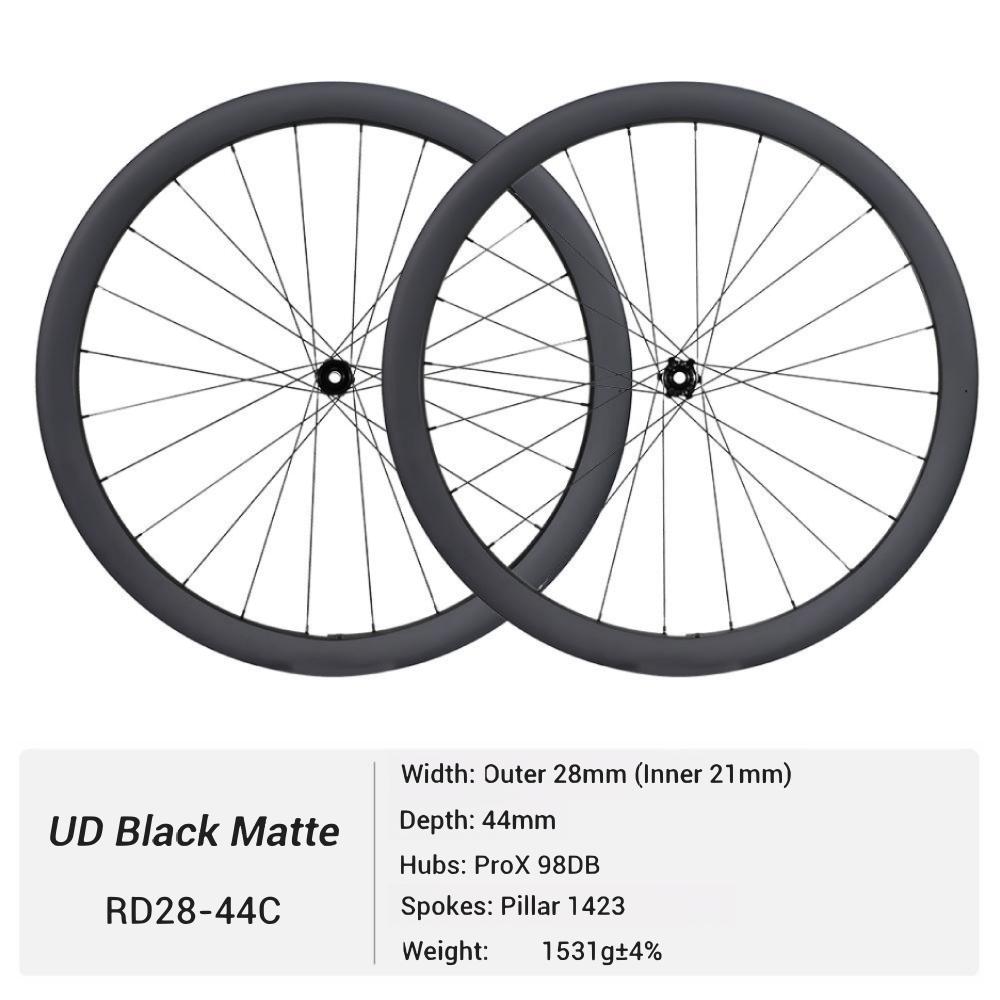

Wheel Model	98DB-RD28-33C	98DB-RD28-38C	98DB-RD28-44C	98DB-RD28-50C	98DB-RD28-55C

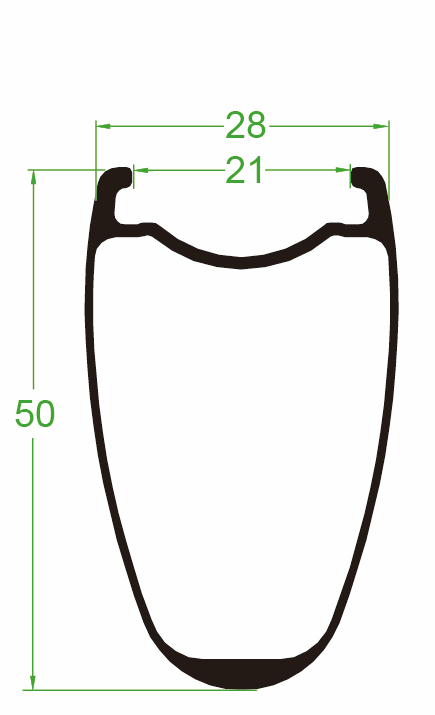

Rim Sectional Drawing

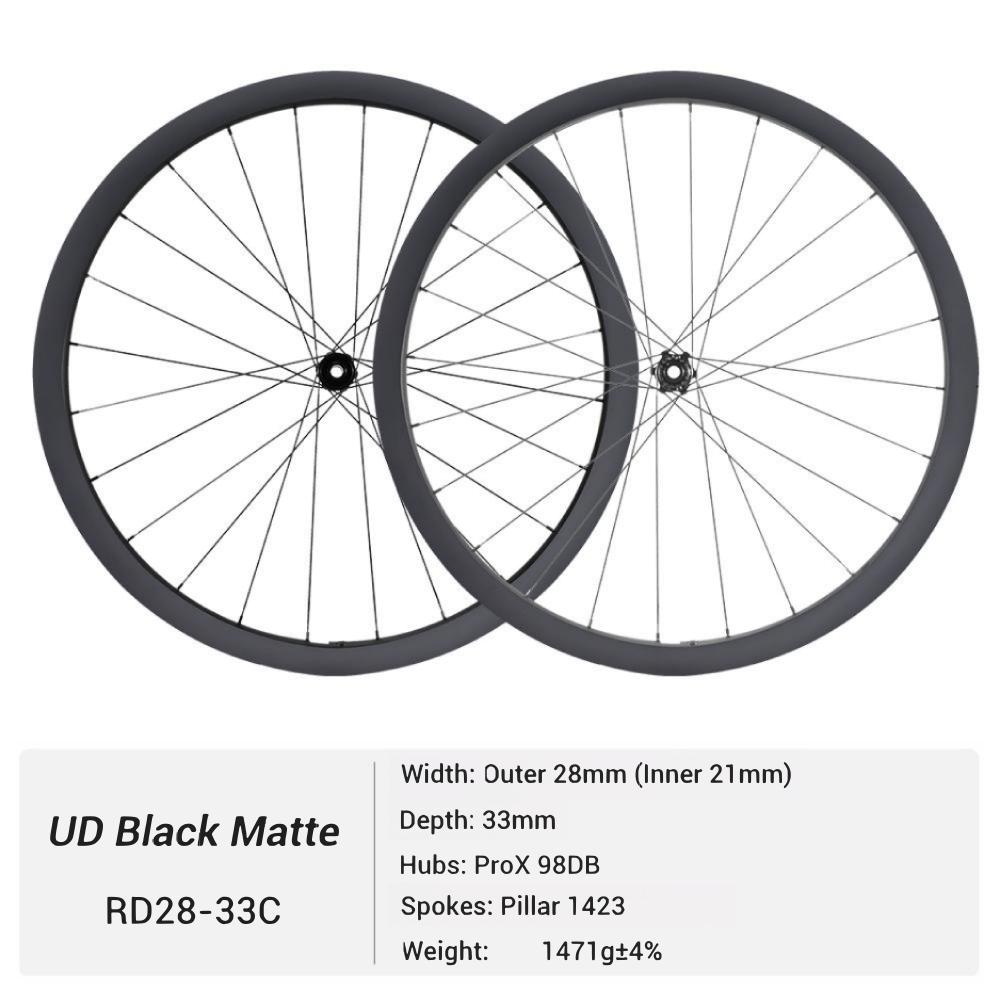

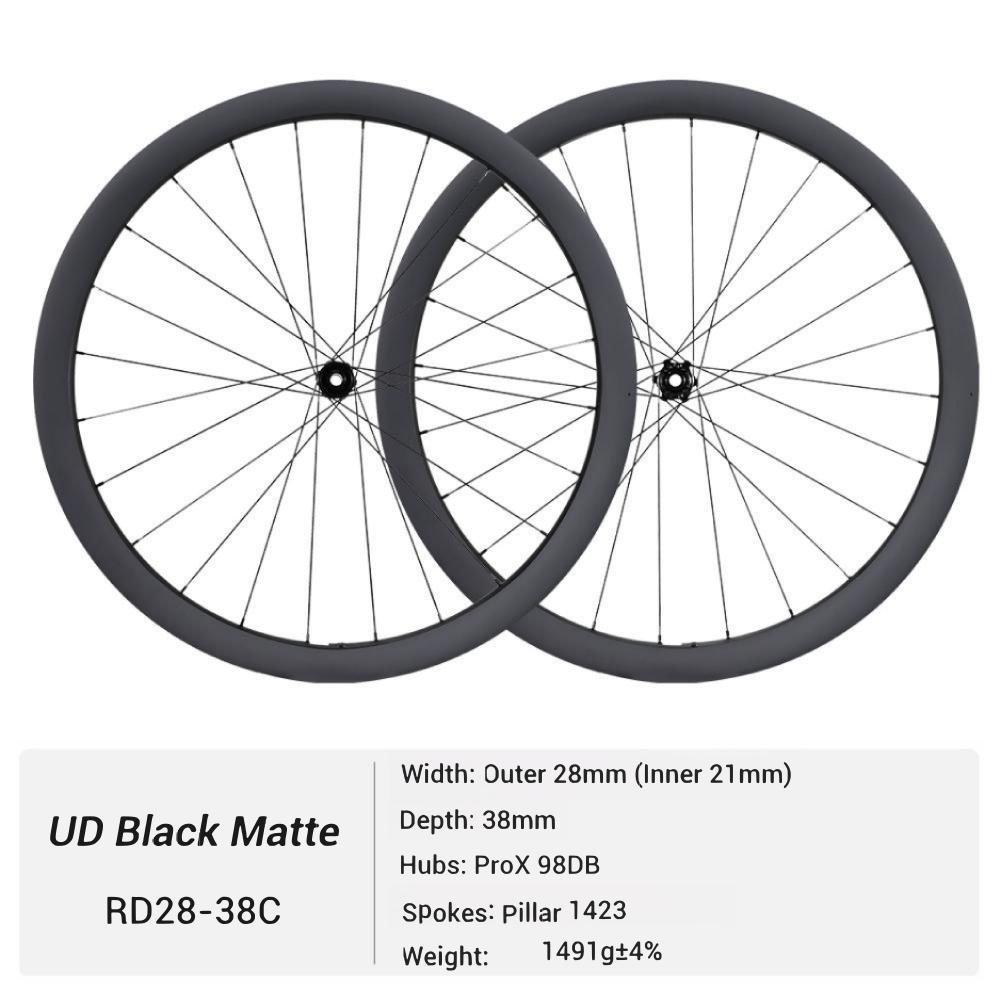

Carbon Rim Model	RD28-33C	RD28-38C	RD28-44C	RD28-50C	RD28-55C
Carbon Rim Depth	33mm	38mm	44mm	50mm	55mm
Carbon Rim Width	28mm Outer (21mm Inner)	28mm Outer (21mm Inner)	28mm Outer (21mm Inner)	28mm Outer (21mm Inner)	28mm Outer (21mm Inner)
Carbon Rim Surface	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish	UD Black Matte Finish
Carbon Rim Material	Toray T700+T800 Carbon	Toray T700+T800 Carbon	Toray T700+T800 Carbon	Toray T700+T800 Carbon	Toray T700+T800 Carbon
Carbon Spokes	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray	Pillar 1423 Sapim CX-Ray
Wheel Weight (+/-3%)	1471g | 1481g	1491g | 1501g	1531g | 1541g	1591g | 1601g	1631g | 1641g
Front/Rear Hubs	ProX 98DB	ProX 98DB	ProX 98DB	ProX 98DB	ProX 98DB
Front/Rear Hub Size	12x100mm/12x142mm	12x100mm/12x142mm	12x100mm/12x142mm	12x100mm/12x142mm	12x100mm/12x142mm
Front/Rear Holes Count	24H/24H	24H/24H	24H/24H	24H/24H	24H/24H
Brake Type	Disc Brake (Center Lock)	Disc Brake (Center Lock)	Disc Brake (Center Lock)	Disc Brake (Center Lock)	Disc Brake (Center Lock)
Tire Type	Tubeless or Clincher	Tubeless or Clincher	Tubeless or Clincher	Tubeless or Clincher	Tubeless or Clincher
Tire Size (Recommended)	700x28C-45C	700x28C-45C	700x28C-45C	700x28C-45C	700x28C-45C
Max Weight Limit	105kg/230lb	105kg/230lb	110kg/240lb	115kg/250lb	115kg/250lb

< Rims >

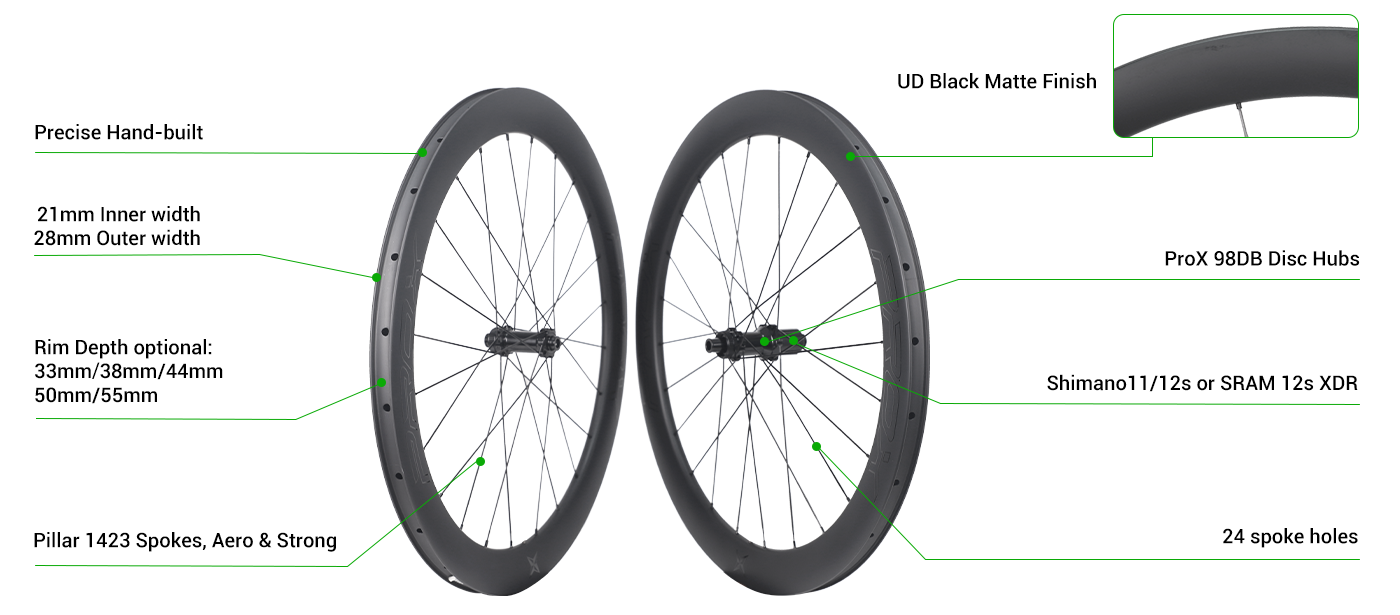

The High-strength & aerodynamic disc brake road carbon rims – clincher type, tubeless-ready compatible!
Boosted by an upgraded layup structure, they support tire pressure up to 180psi.
Both tube and tubeless tires can be mounted effortlessly, balancing top performance with practicality and fits tire sizes 700×28C-45C.

Spokes:

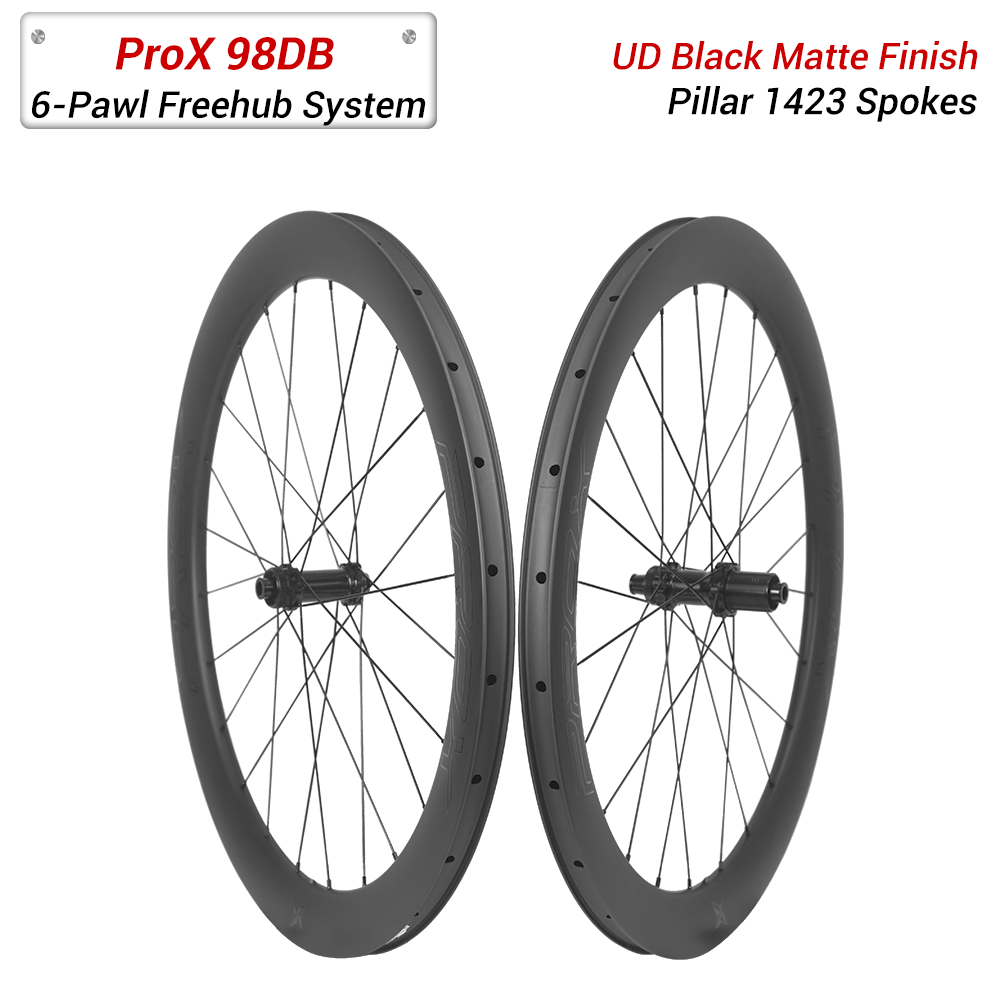

The popular Pillar PSR AERO 1423 spokes are used.
Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.
Perfect aero shape, high elasticity and low drag coefficient.

Quality Control & Testing
More details regarding PROX carbon rims and wheels testing can be found by clicking below pictures:
