- Designed with 12 degrees flare drop bar
- Made of Toray T700 carbon fiber
- Aero shape design with 8mm lift.
- Full internal and semi-internal cable routing compatible
- Carbon computer holder is included
- 2 years’warranty

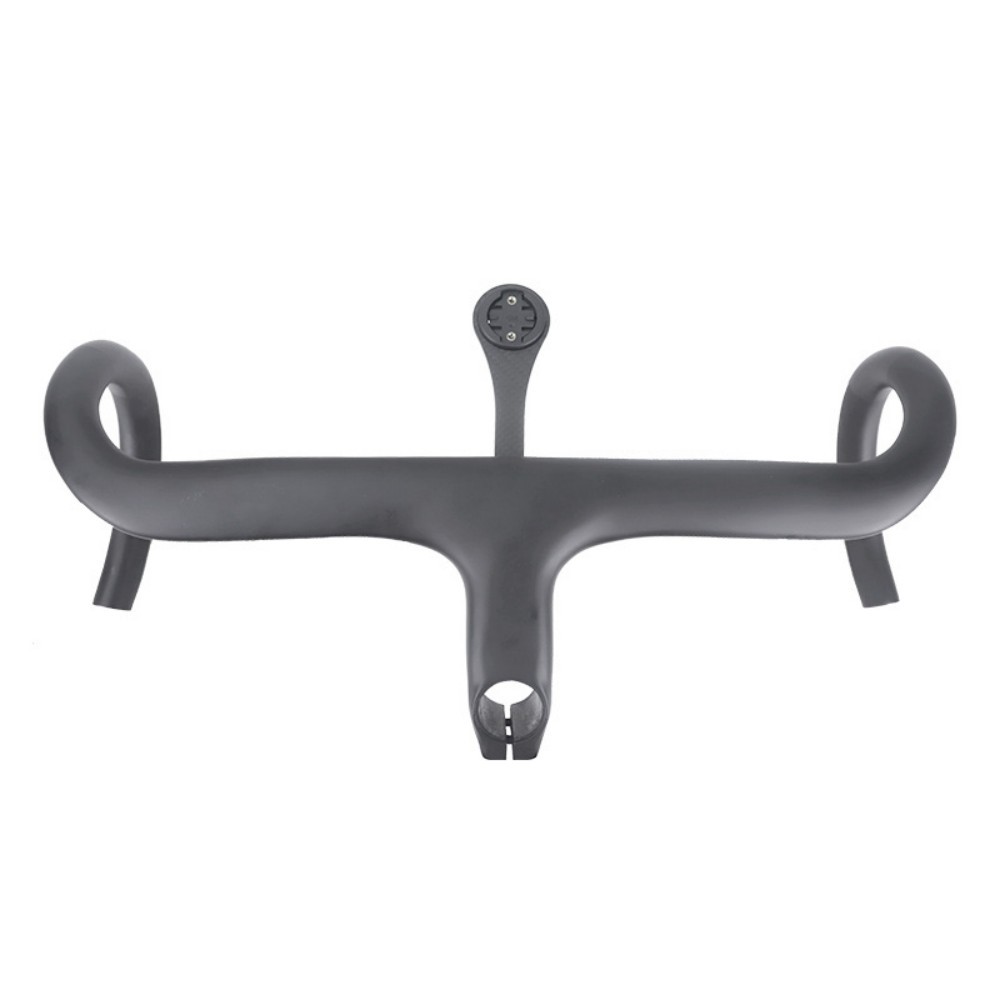

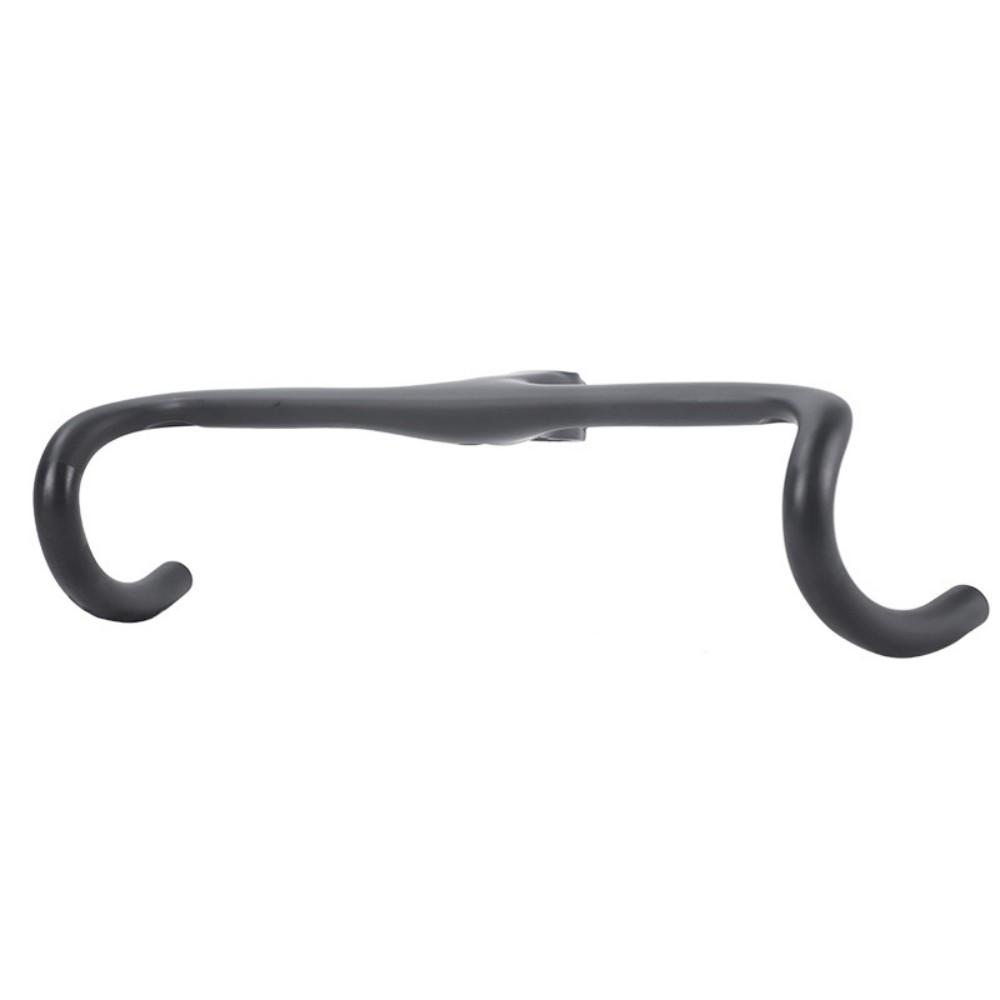

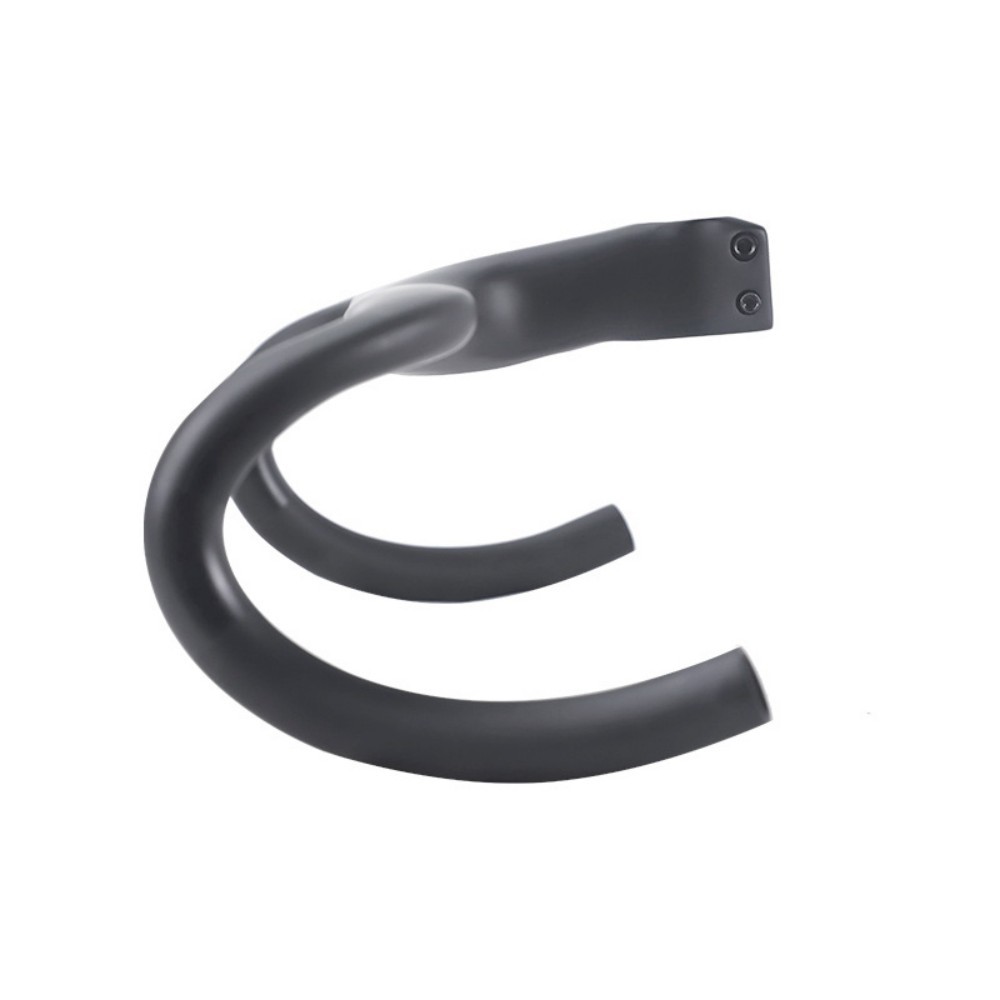

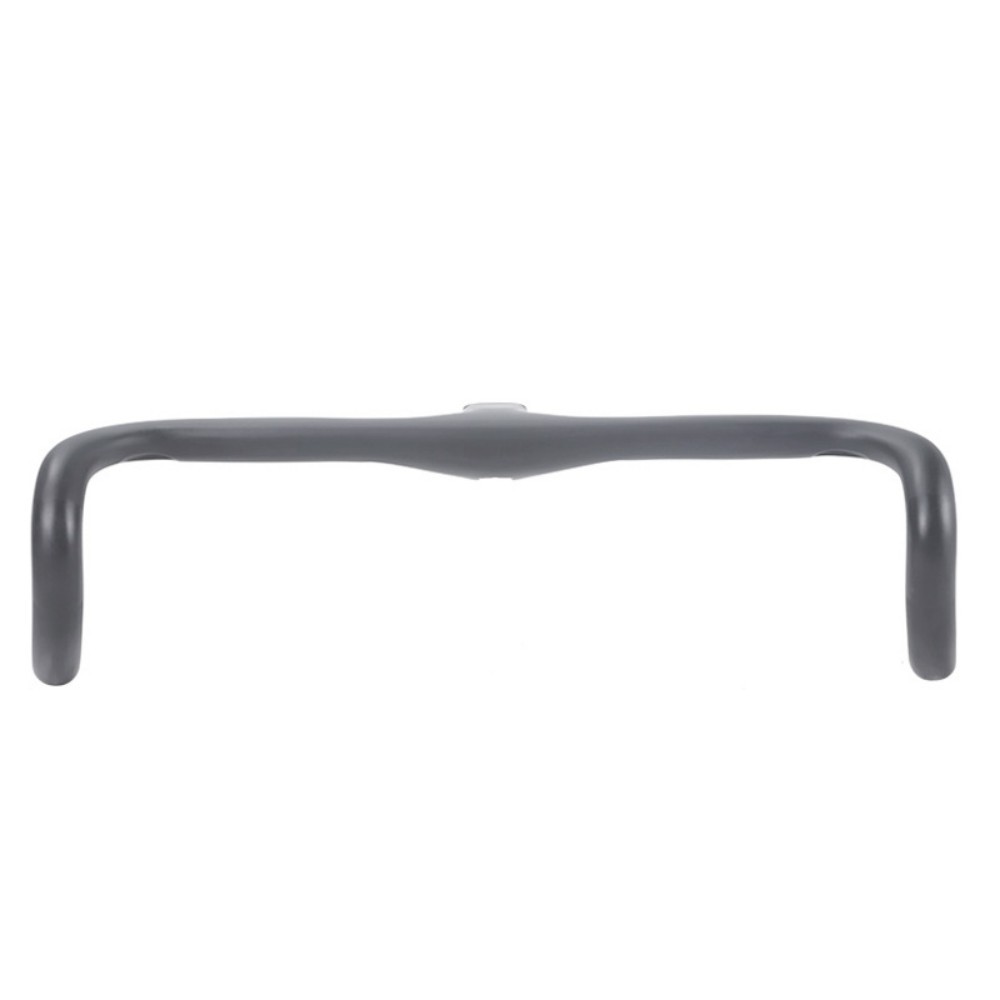

ProX Carbon Road Integrated Aero Handlebar for Gravel
Features of HBR08 Gravel Handlebar
- Combine stiffness, durability and excellent handling.
- Designed with 12° flare drop bar, for better comfort, your good companion for long distance adventure.
- Optional handlebar width 38/40/42/44cm, stem length 90/100/110/120mm.
- Two usages: full hidden internal cable routing (cable exit from under stem then enter frame headtube, LightCarbon specific spacers needed) and
semi-internal cable routing (cable exit at the bottom of handlebar and enter frame from two sides of downtube).

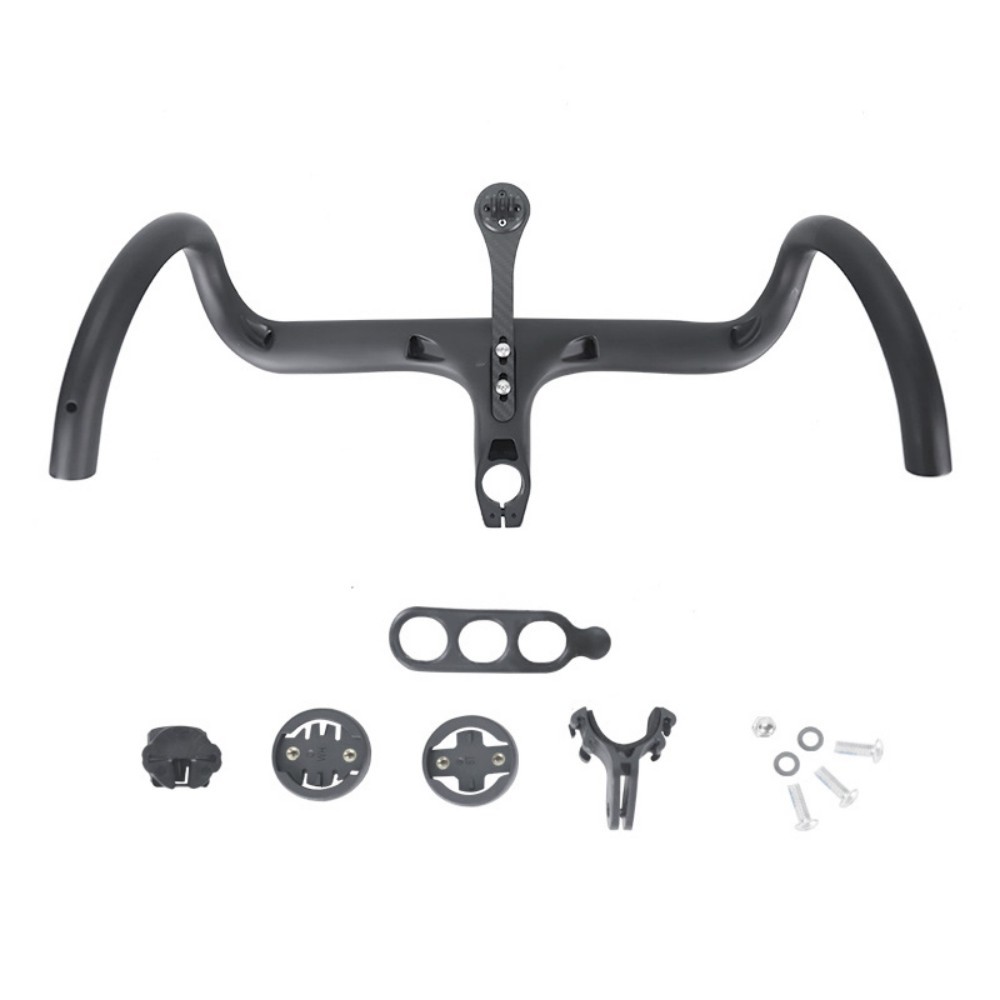

- Contents: HBR08+carbon computer mounts(Garmin/Wahoo/Bryton)+cateye+GoPro holder+bolts.
| Handlebar Model | HBR08 |
| Material | High modulus Toray T700 carbon fiber |
| Handlebar width | 380mm/ 400mm/ 420mm/440mm (Top Center to Center) |
| Stem length | 90mm/ 100mm/ 110mm/ 120mm |
| Stem height | 37mm |
| Reach | 82mm |
| Drop | 125mm |
| Stem angle | -7 degrees |
| Steerer tube diameter | 28.6mm (1 1/8'') |
| Clamp torque | 6N.m |
| Two wiring types | Full internal / Semi-internal |
| Computer mount | Garmin/Bryton/Wahoo |
| Weight | 375g +- 4% (380*90mm) 380g +- 4% (380*100mm) 385g +- 4% (400*100mm) 395g +- 4% (420*100mm) |
| Brand | No LOGO (can be customized) |
| Test standard | ISO4210 |
| Warranty | 2 years |
| Package included | HBR08+carbon computer mounts(Garmin/Wahoo/Bryton)+cateye+GoPro holder+bolts |
